Alloy Steel Tension Link Load Cell , 10t 100t 500t Crane Load Cell For Weighing
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel ,stainless Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Usage: | Weighing |
| Sealing Class:: | IP67-IP68 | Name: | High Accuracy Load Cell |
| High Light: | Beam Type Load Cell,High Accuracy Load Cell |
||

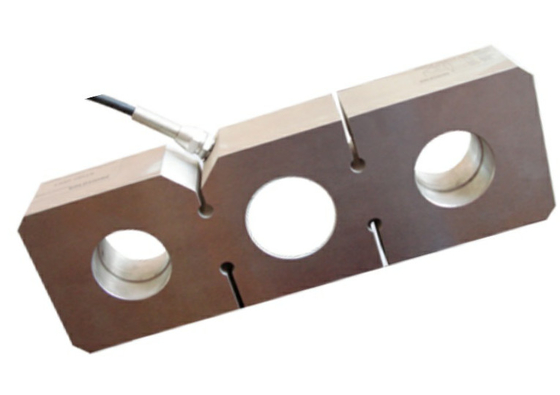

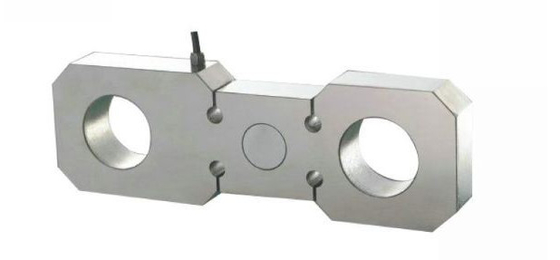

Tension Link alloy steel weighing load cell for Cranes 10t 100t 500t
Specifications:
| Rated Load: | 1/2/3/5/7.5/10/20/30/40/50/60/75/100/150/200/250/300/500t | ||
| Sensitivity: | (2.0±0.01%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.02% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12 DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 351±2Ω | Cable: | Length=L:1m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) | ||
Description:
1. We make the lifting industry a safer place, are national and international market leaders in the production and supply of industrial load link load cell, dynamometers, compression & tension, systems and connected instrumentation and accessories.
2. Load link load cells and force sensor measurement systems manufactured by us are renowned for measurement that achieves high accuracy, and is safe, reliable and stable.
3. Recognised by industries across the world for the design and quality of their products, we also enjoys an unrivalled reputation for setting industry-standard service, fast delivery and flexibility.
4. A dedicated team of staff at the ready for your needs and technical support.
Applications:
it is for the rebuild of crane sinker wheel machine at the port and some simple equipment inspection
Competitive Advantage:
1. Professional manufacturer with 10 years
2. OEM/ODM service acceptable
3. 100% inspection
4. Warranty: one year
