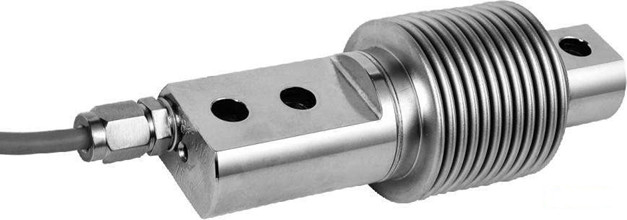

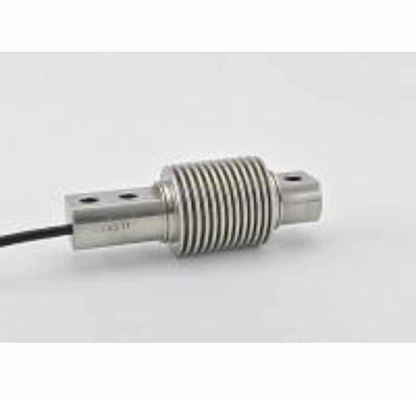

Oil Proof Shear Beam Weighing Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Good Quality And Low Price | Model Number: | LC339 |
|---|---|---|---|
| Output: | 2.0mV/V | Material: | Alloy Steel/Stainless Steel |
| Usage: | Weigh The Weight Of The Weigher | Capacity: | 10-500kg |
| Keywords: | Laod Cell | Warranty: | 12 Months |
| Highlight: | High Accuracy Load Cell,Tension Link Load Cell |
||
LC339 share beam load cell high performance 10 kg -500 kg from germany load cell
Products Specification:
◆ LC339 are available in the capacities 10kg to 500kg. And the customized capacity is available by request.
◆ Alloy steel construction,welded with bellow,potted by adhesive inside,oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.

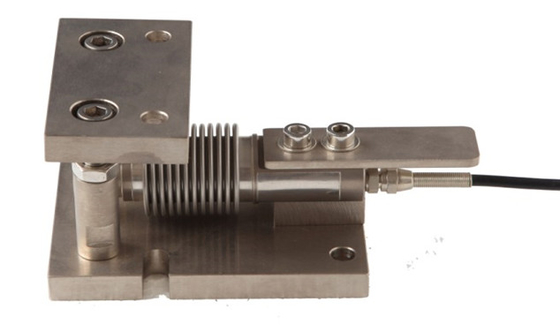

◆ Single point with bellow, easy installation,suitable for crane scales,mechanical conversion scales,hopper scales and other electronic weighing devices.
◆ Safe and anti-explosive product, can be used in atrocious environment and hazardous areas.
Dimensions Unit: mm:
Technical Parameter:
| Rated Load: | 10/20/30/50/75/100/150/200/250/300/500kg | ||
| Sensitivity: | (2.0±0.1%) m V/V | Operating Temp. Range: | -10~+70℃ |
| Combined Error: | ±0.02% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.03% F.S | Ultimate Over Load:: | 300%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP68 |
| Input Resistance: | 385±5Ω | Element Material: | Alloy Steel, Stainless Steel |
| Output Resistance: | 351±2Ω | Cable: | Length=L:3m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-), Green(Output+),White(Output-) | ||
| Mode Of Connection: | Red(Input+),Black(Input-), Green(Output+),White(Output-) |
