Compression Column Type 100 Tons Weighing Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel ,stainless Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Digital Sensor | Usage: | Pressure Sensor |
| Sealing Class: | IP67-IP68 | Name: | Load Cells For Scales |
| High Light: | Beam Type Load Cell,Tension Link Load Cell |
||

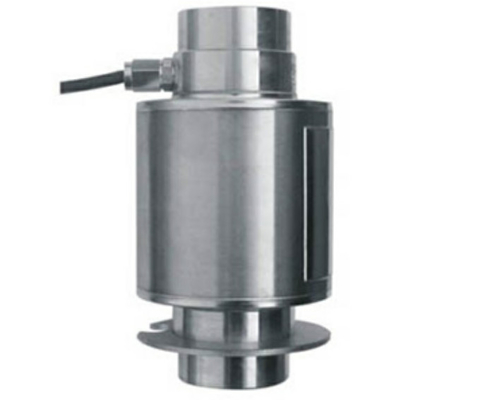

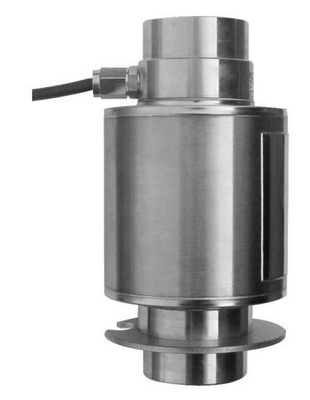

Compression colume type Digital weighing Load Cell 100t for truck weighing scale
Description:
Compression Digital Load Cell LC409D is a reliable sealing and mechanical protection of the strain gauge area is ensured by the use of potting compound with a metal cover. LC409D digital load cell. Digital output signal (RS-485/4-Wire). Normal load 10~100t. Self-restoring rocker pin. Easy to install. Hermetically sealed. Produce according OIML R60 to 3000d. Over voltage protection.
Specifications:
| Rated Load: | 10/25/40/60/100t | ||
| Rated Output: | 1000000 | Operating Temp. Range: | -30~+70℃ |
| Baud Rate:: | 9600 Baud | Maximum Safe Over Load: | 150%F.S |
| Measuring Rate: | 80/sec | Ultimate Over Load: | 250%F.S |
| Communication Mode: | RS485/4-wire | Recommend Excitation Vol.: | 10~12V DC |
| Combined Error: | ±0.03% F.S | Maximum Excitation Vol.: | 15V DC |
| Creep Error(30min): | ±0.02% F.S | Sealing Class: | IP67/IP68 |
| Zero Balance: | ±1% F.S | Element Material: | Alloy /Stainless Steel |
| Temp. Effect On Zero: | ±0.017% F.S/10℃ | Insulation Resistance: | ≥5000MΩ |
| Temp. Effect On Span: | ±0.017% F.S/10℃ | Citation: | GB/T7551-2008/ OIML R60 |
| Cable: | Length=12m~18m | ||
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) | ||
Applications:
Testing machine, Compression force test ,Safe overload ,Floor scale ,Steel embody scale ,Tank scale,Truck Scale,Warehouse scale
Competitive Advantage:
1. We have more than 10 year experience for manufacturing truck scale, floor scale, animal scale, axle weighing scale etc. We have advanced manufacturing equipment, moreover we are the leader in weighing scale field.
2. We pay attention to scale quality, we pay attention to supervise the quality of products effectively.
3.We will supply customers installation guide and using guide after sales.
4. Full scale weight debugging and calibration
5. We can supply superior quality weighing scale with reasonable price and provide best service
