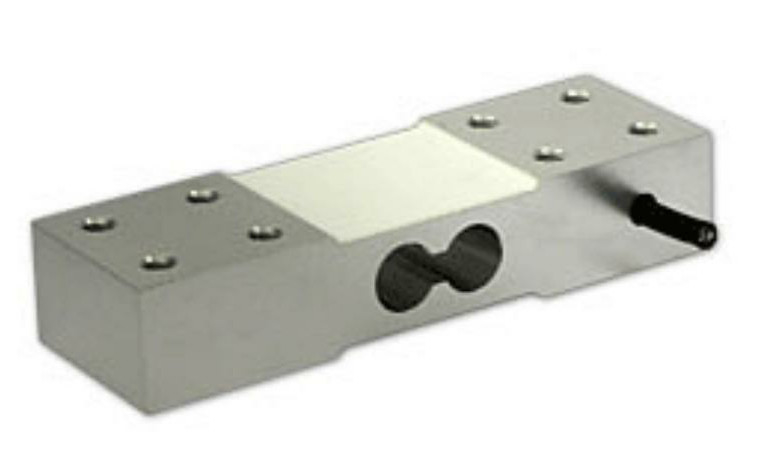

Aluminum Single Point Load Cell Weight Sensor

Aluminum Single Point Load Cell Weight Sensor

Aluminum Single Point Load Cell Weight Sensor
Aluminum Single Point Load Cell Weight Sensor

Large Image :  Aluminum Single Point Load Cell Weight Sensor Get Best Price

Product Details:
Certification: CE
Model Number: AM619
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: carton
Delivery Time: 20days
Supply Ability: 100pcs/m
Detailed Product Description
Material: Aluminum Theory: Resistance Sensor
Output: Analog Sensor Usage: Weighing Scale
Highlight:

High Accuracy Load Cell

,

Tension Link Load Cell

Heavy parallel beam aluminum weighing sensor single point load cell 100kg 150kg 200kg 300kg







Description:



1. AM619 load cells are available in the capacities 20~300kg .And the customized capacity is available by request.
2. Aliminum construction,making it in all kinds of environments.
3. good self-aligning ability, suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.



Specifications:



Rated Load: 20/30/50/60/100/150/200/250/300kg
Comprehensive Error: 0.02%F.S Insulation Resistance: ≥5000MΩ(100VDC)
Rated Output: 2±0.1mV/V Excitation Voltage: 9VDC~12VDC
Non-Linearity: 0.02%F.S Compensated Temp. Range: -10℃~+40℃
Hysteresis: 0.02%F.S Use Temp. Range: -20℃~+60℃
Repeatability: 0.02%F.S Temp. Effect On Zero: 0.03%F.S/10℃
Creep: & 0.02%F.S/10min Temp. Effect On Span: 0.02%F.S/10℃
Zero Balance: ±1%F.S Safe Overload: 120%
Input Resistance: 405±10Ω Ultimate Overload: 150%
Output Resistance: 350±3Ω Defense Class: IP65



Aluminum Single Point Load Cell Weight Sensor 0

Aluminum Single Point Load Cell Weight Sensor 1



Applications:



Suitable for pricing scales, platform scales and
other electronic weighing devices



Competitive Advantage:



1. Low MOQ: It can meet your promotional business very well.

2. OEM Accepted : We can produce any your design .

3. Good Service : We treat clients as friend.

4. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
