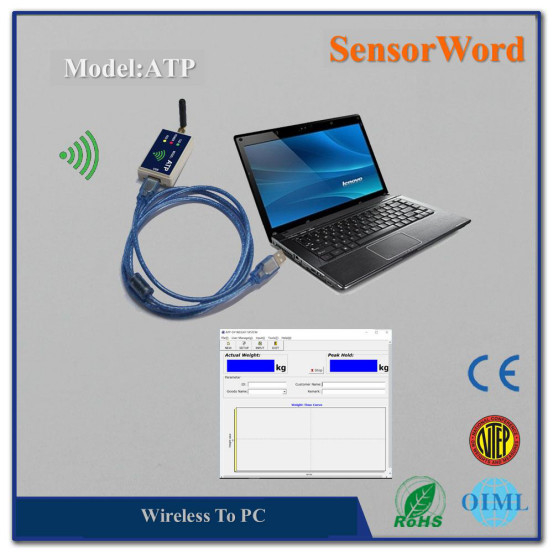

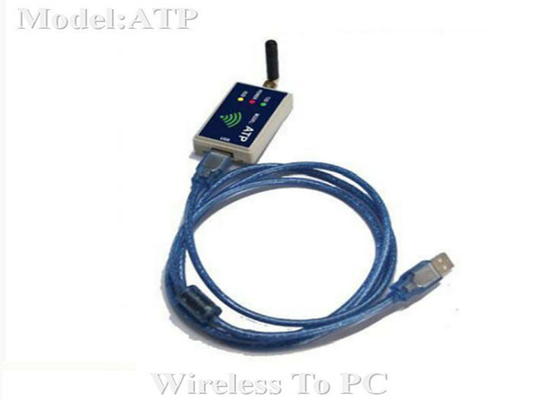

ATP Wireless To PC Digital Weight Indicator

ATP Wireless To PC Digital Weight Indicator

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  ATP Wireless To PC Digital Weight Indicator Get Best Price

Product Details:
Place of Origin: China
Brand Name: SKYERSCALE
Certification: CE
Model Number: ATP
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton
Delivery Time: 15-20days
Supply Ability: 1000pcs/M
Detailed Product Description
Type: Terminal To PC Interface: USB(RS232)
Optional Power: DC5V(USB) Communication Protocol: 9600,N,8,1
Name: Load Cell With Indicator OEM / ODM: Available
High Light:

Load Cell Indicator

,

Digital Scale Indicator

ATP(Wireless to PC)

Description:



Software Installation instructions:



1. When you Insert the USB port to PC,it will notice you to install the driver of USB to RS232, after installation , Computer will find a new RS232 port.

2. Run the ATP software, click “SETUP” button, you will enter to system setup form, choose the com port ,then click “SAVE” button .

3. Restart the software, You can find the red led is light and green light is flickering,that is ok.



Specifications:



Interface USB (RS232)
communication protocol 9600,N,8,1
Receive Mode Continuous or Command
Operating Temperature -10 °C ~40 °C
Allowable Working Temperature -40 ° C ~ 70 ° C
Wireless Transmission Frequency 430MHz to 470MHz
Wireless Transmission Distance 300 meters (in wide place)
Optional Power DC5V(USB)

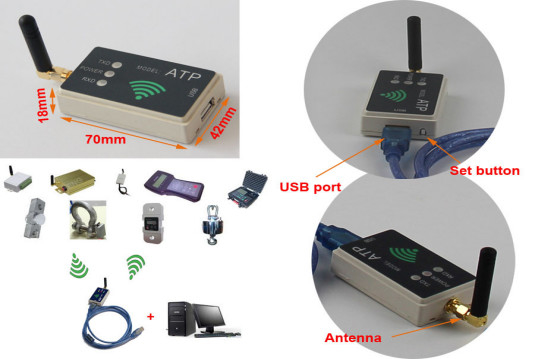

Dimension 70×42×18mm(Without antenna)



Applications:



Weighing functions

computer



Competitive Advantage:


1. Professional manufacturer with 10 years

2. OEM/ODM service acceptable

3. 100% inspection

4. Warranty: one year
