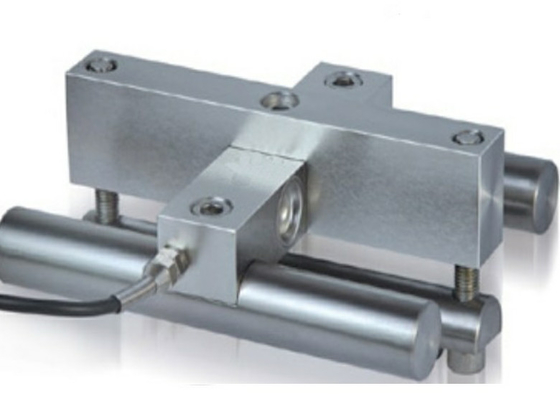

Elevator Alloy Steel Weighing Load Cell Sensor 800kg For Automotive Industry
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel ,stainless Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor, 2.0mv/v | Usage: | Pressure Sensor |
| Sealing Class:: | IP67-IP68 | Name: | Alloy Steel Load Cell |
| High Light: | Beam Type Load Cell,Tension Link Load Cell |
||
Cheap overload elevator alloy steel weighing load cell sensor 800kg
Specifications:
| Rated Load: | 5000kg | Input Resistance: | 760±10Ω |
| Rated Output: | 2.0±0.02%m V/V | Output Resistance: | 700±2Ω |
| Total Error: | ±0.5%FS | Insulation Impedance: | ≥5000MΩ |
| Repeatability: | ±0.1%FS | Safe Overload: | 150%F.S |
| Creep (30min) | ±0.05FS/30min | Ultimate Overload: | 200%F.S |
| Zero Balance: | ±1% F.S | Construction: | Alloy Steel, SS |
| TC SPAN: | ±0.02%FS/10℃ | Protection Class: | IP67 / IP68 |
| Operating Temp. Range: | (-30~70) ℃ | Citation: | GB/T7551-2008/ OIML R60 |
Description:
1. LCE001 Elevator load cells are needed to measure weight and force with a high precision and reliability.
2. LCE001 Elevator load cells are most trustworthy systems with application in different industrial sectors, such as cranes, automotive industry, industrial weighing and handling elevators.
3. An improved measuring device for measuring the load of an elevator is specially development .
Applications:
Weighing functions
Competitive Advantage:
1. Professional manufacturer with 10 years
2. OEM/ODM service acceptable
3. 100% inspection
4. Warranty: one year
