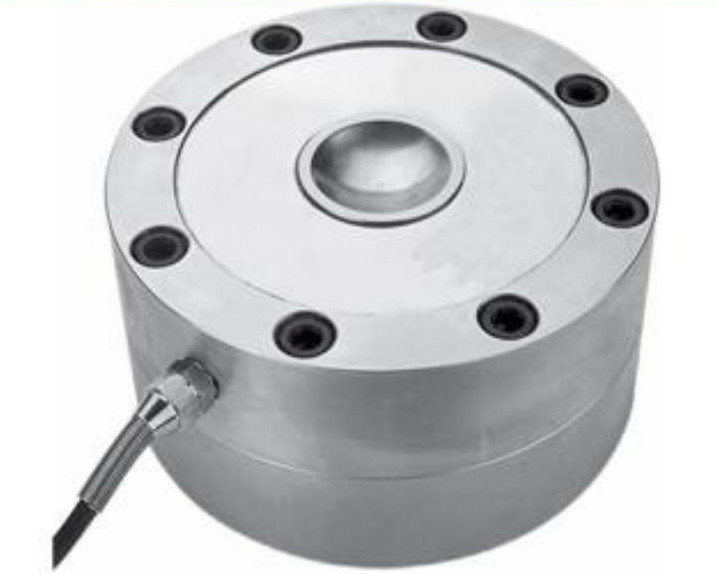

10t Torsion Ring Spoke / Pancake Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel ,stainless Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Digital Sensor | Usage: | Pressure Sensor |
| Sealing Class:: | IP67-IP68 | Name: | Torsion Load Cell |
| High Light: | High Accuracy Load Cell,Tension Link Load Cell |
||
10t High precision Torsional Ring Spoke Type Load Cell/Pancake Type Load Cell made in China
Description:
Stronger four-direction side force resistance and overload protection capacity. Moisture proof seal, ideal for hostile environment, Simple to install, good interchangeability. Suitable for various truck scale, railroad scale, etc.
Specifications:
| Cap./Size | D | D0 | D1 | H | H0 | H1 | H2 | M×P |
| 10t | Ø40 | Ø138 | Ø50 | 134.5 | 74 | 17 | 35 | 20×1.5 |
| 20,25t | Ø50 | Ø165 | Ø65 | 717 | 86.1 | 25 | 50 | 24×1.5 |
| 30t | Ø50.8 | Ø165 | Ø75 | 176 | 86.1 | 25 | 55 | 30×1.5 |
| 40t | Ø76.2 | Ø165 | Ø85 | 221 | 95.8 | 25 | 65 | 40×1.5 |
| Rated Load: | 10/20/25/30/40t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) m V/V | Max. Safe Over Load: | 150%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy /Stainless Steel |
| Input Resistance: | 385±5Ω | Cable: | Length=L:13m |
| Output Resistance: | 352±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: |
Red(Input+),Green(Output+), Black(Input-),White(Output-) |
Applications:
Weighing functions
Competitive Advantage:
1. We support small orders,fast delivery for customers to save even more valuable time.
2. We have abundant production and export experience ,best price and good quality.
3. We have global market,has been exported to Chile, UK, Czech, Latvia,Thailand, ViteNam, Chile,Canada,Philippines,Span etc. various countries around the world.
