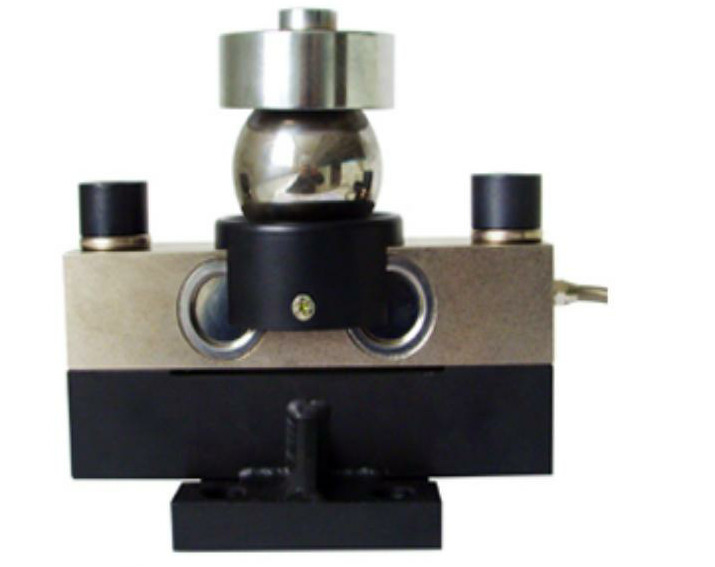

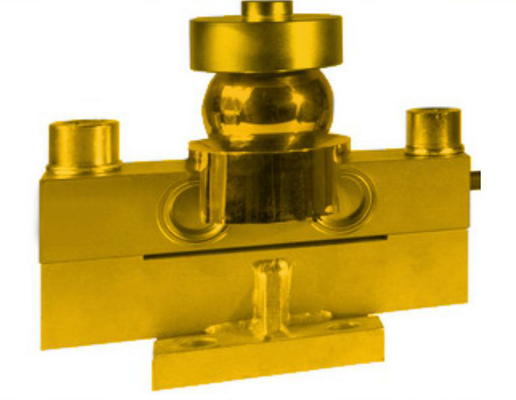

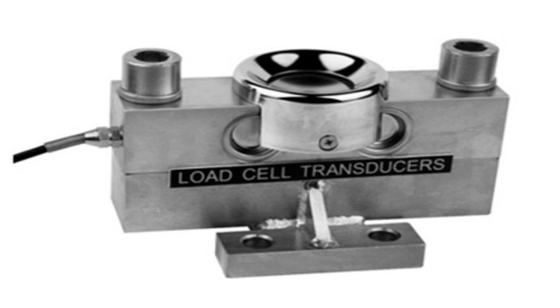

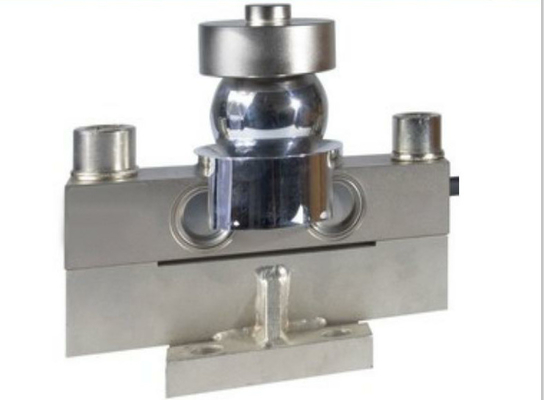

Weighbridge Truck Scale Dual Shear Beam Weighing Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Type: | Column Type |
| Name: | Weighing Load Cell | ||
| Highlight: | Beam Type Load Cell,Tension Link Load Cell |
||
keli QS Bridge type weighing load cell used for weighbridge truck scale
Description:
Double Ended Beam Load Cells
1. Alloy steel
2. Hermetically sealed ,Legal for trade verification according to OIML R60 up to 3000d
3. Nominal load 10t-50t
4. Dual-shear Beam
5. Easy to install
Specifications:
| Rated Load: | 5/10/20/25/30/40/50t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150,120 (40~50t)%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300,200(40~50t)%F.S |
| Creep Error(30min): | ±0.01% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Tco: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Tc Span: | ±0.02% F.S/10℃ | Element Material: | Alloy/Stainless Steel |
| Input Resistance: | 750±5Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Cable: | Length=13m |
| Output Resistance: | 703±2Ω,703±5 Ω(L≥15m) | Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
Applications:
Weighing functions
Competitive Advantage:
1. We provide professional consultation guidance, site installation guidance and debugging guidance.
2. All the products provide 1 year free warranty,life-long maintenance.
3. We provide telephone technical guidance for other provinces and overseas.
