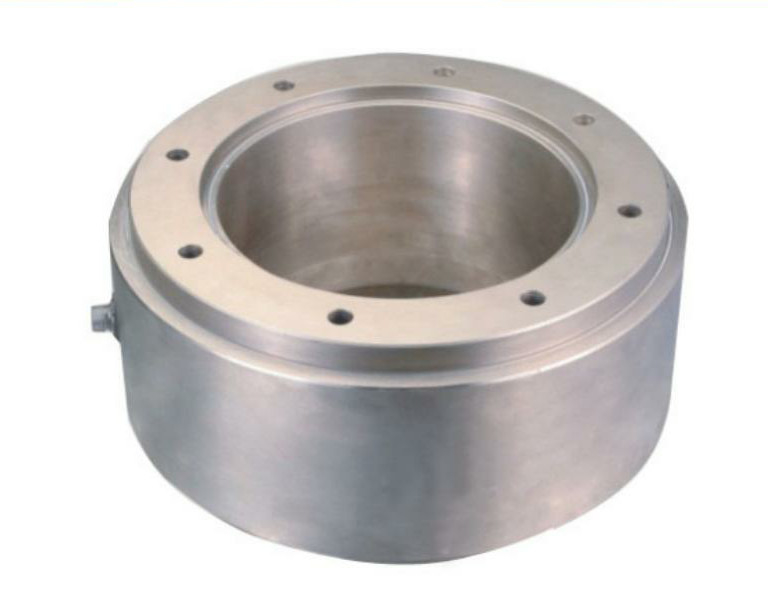

Multi Column 6500KN Miniature Load Cell For Weighing Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Type: | Column Type |
| Name: | Column Type Load Cell | ||
| High Light: | Beam Type Load Cell,Tension Link Load Cell |
||
Compression Load Cells, Multi Column 6500kN weighing sensor
Description:
1. Aluminum alloy or stainless stel structure
2. Super miniature load cell
3. Specially made for force measuring with limited space
4. Application to truck scale, railway scale, axle scale, storage scale and other weighing equipment.
Specifications:
| Cap. /Size | D | D1 | D2 | d | d1 | H | H1 | H2 | M | ||||
| 600 | 160 | 140 | 120 | 80 | 100 | 100 | 5 | 5 | 4-M12 | ||||
| 1000 | 200 | 170 | 145 | 100 | 120 | 110 | 5 | 5 | 4-M12 | ||||
| 1500 | 225 | 190 | 160 | 120 | 135 | 120 | 5 | 5 | 4-M12 | ||||
| 2000 | 260 | 230 | 195 | 140 | 160 | 130 | 5 | 5 | 4-M12 | ||||
| 3000 | 270 | 245 | 225 | 160 | 180 | 150 | 10 | 5 | 4-M12 | ||||
| 4000 | 295 | 275 | 235 | 195 | 175 | 160 | 10 | 10 | 8-M16 | ||||
| 5000 | 340 | 310 | 265 | 196 | 215 | 165 | 10 | 10 | 8-M16 | ||||
| 6500 | 385 | 355 | 305 | 240 | 260 | 180 | 10 | 20 | 8-M16 | ||||
| Capacity: | 600/1000/1500/2000/3000/4000/5000/6500kN | ||||||||||||
| Accuracy: | 0.2%FS | Insulation Resistance: | ＞2000MΩ | ||||||||||
| Sensitivity: | 2.0 V/V | Temperature Effect On Sensitivity: | ＜0.1%FS/ 10℃ | ||||||||||
| Non-Linearity: | ≤0.2%FS | Temperature Effect On Zero Balance: | ＜0.1%FS/ 10℃ | ||||||||||
| Repeatability: | ≤0.05%FS | Reference Excitation Voltage: | 10V (DC) | ||||||||||
| Hysteresis: | ≤0.2%FS | Nominal Range Of Excitation Voltage: | 6~12V(DC) | ||||||||||
| Input Resistance: | 380Ω | Service Temperature: | -30~70℃ | ||||||||||
| Out Resistance: | 350Ω | Safe Load Limit: | 120%FS | ||||||||||
Applications:
Weighing parts
Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well;
2. Good Service: We treat clients as friends;
3. High Quality: We have strict quality control system. Good reputation in the market.
