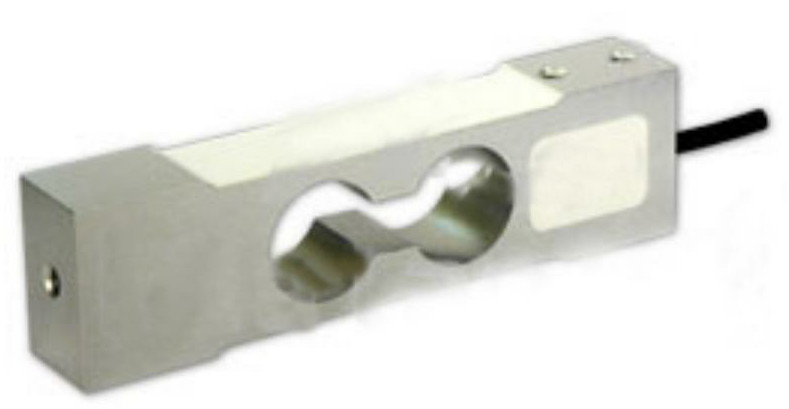

Bench Scales Single Point Aluminum Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Aluminum | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Usage: | Weighing Scale |
| Zero Balance: | ±1.0 %RO | Ultimate Overload: | 200%RO |
| High Light: | Beam Type Load Cell,Tension Link Load Cell |
||
Single point weighing aluminum load cells AM650 (keli UDB,zemic L6E) used for bench scales
Description:
It uses 4-core shielded cable (φ5×1500mm). The length of the cable can be adjusted according to clients' request, but we suggest to use this standard length to ensure the output precision
Applications:
platform scale, electronic balance and industrial weighing system.
Specifications:
| Rated Load: | 5/10/15/20/50/100/120/200/300kg | ||
| Sensitivity | (2.0±0.1%) mV/V | Operating Temp. Range | -30~+70℃ |
| Combined Error | ±0.02% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance | ±1% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Maximum Excitation Vol.: | 15V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Sealing Class: | IP65 |
| Input Resistance: | 385±5Ω | Element Material: | Aluminum-alloy |
| Output Resistance: | 352±2Ω | Cable: | Length=L:3m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-1997/ OIML R60 |
Competitive Advantage:
1. High quality and Durable,Competitive Price
2. OEM Accepted : We can produce any your design .
3. 3. Good Service and Adequate Stock
4. 4. Good Quality :We have strict quality control system .Good reputation in the market.
5. 5. Convenient Transportation and fast delivery
