5000lbs Mild Steel Digital Floor Weighing Scales
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Industrial Floor Weighing Scales | Treatment: | Powder Coated |
|---|---|---|---|
| Color: | Gray, Red, Black, Blue | Material: | Carbon Steel Or 304SUS |
| Power Supply: | 110-220V(AC) | Load Cell: | Alloy Steel Shear Beam |
| Display: | A12 LCD Or A12E LED, | ||
| High Light: | 5000lbs industrial floor scales,mild steel digital floor scale |
||

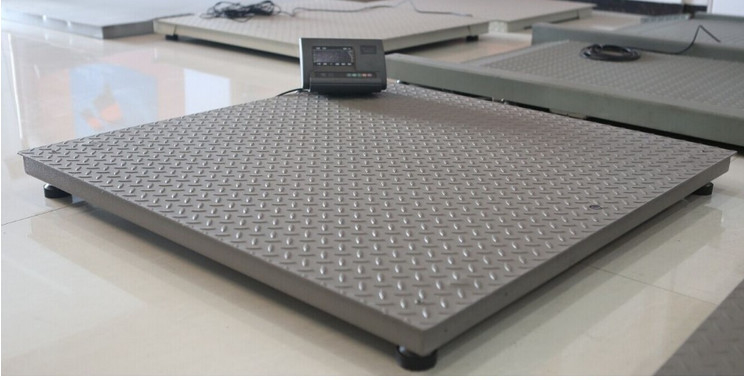

5000lbs heavy duty mild steel digital floor weighing scale1.2x1.2m,1.2x2.2m
Description:
1). 8mm thick Checker plate platform, without frame
2). Mild-steel structure, U shape beams by modules.
3). Sandblasting before powder coated.
4). 4 load cell construction
5). 5mm or 6mm thick checker top plate platform.
6). With KELI SQB /ZEMIC H8C/ Guangce YZC shear beam load cells.
7). With plastic junction box, and 5m cable in protection of metal-plastic jacket cable.
8). Adjustable heavy duty rubber feet.
9). YAOHUA A12 indicator optional.
10). Optional ramps
Specifications:
| Model | Size(m) | Capacity(t) |
| 1010 | 1.0X1.0 | 1~3 |
| 1212 | 1.2X1.2 | 1~3 |
| 5 | ||
| 1215 | 1.2x1.5 | 1~3 |
| 5 | ||
| 1515 | 1.5X1.5 | 1~3 |
| 5 | ||
| 1520 | 1.5X2 | 1~3 |
| 5 | ||
| 2020 | 2.0X2.0 | 1~3 |
| 5 | ||
| 2030 | 2.0X3.0 | 1~3 |
| 5 |
Optional in platform size, Max. Cap.
Optional in load cell, indicator.
Be suitable for weighing vehicles and goods
Ramp is optional
Color is optional—grey, black, blue, green or other colors.
Applications:
Electronic floor scales are suitable for weighing in all types of industrial and commercial applications. Standard version is with approved load cell.
Competitive Advantage:
1. Professional manufacturer with 10 years
2. OEM/ODM service acceptable
3. 100% inspection
4. Warranty: one year
