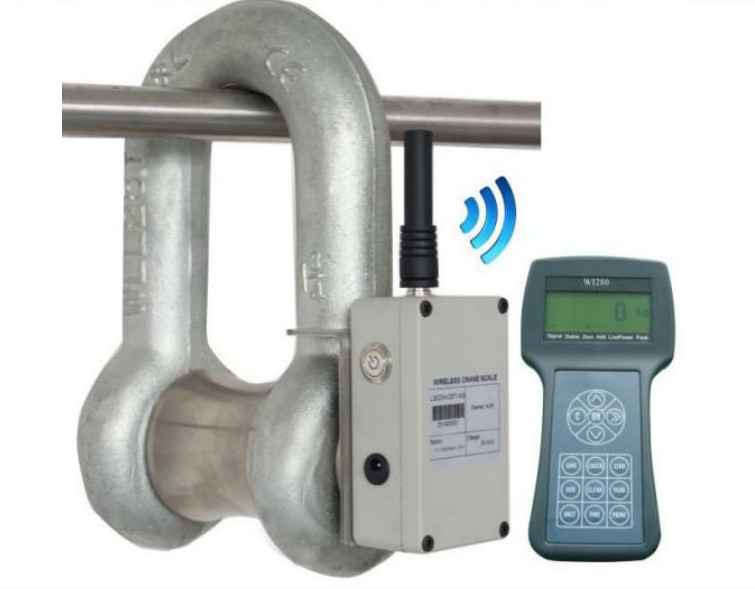

Multi Channel Wireless Load Cell Shackle For Hopper Scale

Multi Channel Wireless Load Cell Shackle For Hopper Scale

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Multi Channel Wireless Load Cell Shackle For Hopper Scale Get Best Price

Product Details:
Place of Origin: China
Brand Name: SKYERSCALE
Certification: CE
Model Number: LS02W
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: CARTONS OR DO AS CUSTOMER'S REQUIREMENT
Delivery Time: 25days
Supply Ability: 1000pcs/m
Detailed Product Description
Feature: Multi Channel Rated Load: 3t 6t 17t 30t 120t
Type: Wireless Load Cell Sealing Class: IP67/IP68
Color: Silver Or Do As Your Requirement Warranty: 1year
High Light:

Tension Load Cell

,

Dynamometer Load Cell

Mutil-Channel Shackle weighing Load Cell 3t 6t 17t 30t 120t

Description:

1. The WaterWeights range of load shackles complements our standard cabled version, and are ideal for situations where the use of traditional cable shackles would limit distance or movement, or where for safety reasons, a greater distance is needed between the load shackles and the operator.
2. In addition to the benefits of increased safety and maneuverability, the load shackles is far more convenient to use, and eliminates the problems associated with long lengths of trailing cable which become easily snagged and are prone to damage.
3. The hand-held display can store up to 20 different transducer parameters which enables one display to accommodate several load shackle signals, and by using a receiver/ data converter that gives RS485 output, the number of monitored transducers can be increased to as many as 32. Battery check, data protection and error detection are also standard features.
4. The shackle load range starts at 3t , with the top load only limited by the availability of shackle forgings, currently around 500t. Normal operating distance is around 800 meters subject to operating conditions.
5. All load shackles come with calibration certificate. Optional carrying cases are available for size up to a 500t rating.

Specification:


150t to 1000t available on request.
Where particular requirements are critical or load cells of a higher specification are required, we would be delighted to assist.



Specifications:
Multi Channel Wireless Load Cell Shackle For Hopper Scale 0

Full Load Ton Max. Proof Load Ton Normal Size ‘A’ Inside Length‘B’ Inside Width ‘C’

Bolt
Dia. ‘D’

Unit Weight(Kg)
3 4.2 25 85 43 28 3
6 8 25 85 43 28 3
10 14 32 95 51 35 6
17 23 38 125 60 41 10
25 34 45 150 74 51 15
35 47 50 170 83 57 22
50 67 65 200 105 70 40
75 100 75 230 127 83 60
100 134 89 270 146 95 100
120 150 90 290 154 95 130
150 180 104 330 155 108 170
200 320 152 559 184 121 215
300 480 172 683 213 152 364
500 800 184 813 210 178 520

Note: All dimensions are subject to change according actual use as a standard.

Wireless Load Links Typical Specifications:


Rate Load:

1/2//3/5/10/20/30/50/100/200/250/300/500T

Proof Load: 150% of rate load
Ultimate Load: 400% F.S.
Power On Zero Range: 20% F.S.
Manual Zero Range: 4% F.S.
Tare Range: 20% F.S.
Stable Time: ≤10seconds;
Overload Indication: 100% F.S. + 9e
Max. Safety Load: 125% F.S.
Battery Life: ≥40 hours
Battery Type:

18650 rechargeable batteries or polymer batteries
(7.4v 2000 Mah)

Operating Temp.: - 10℃ ~ + 40℃
Operating Humidity: ≤85% RH under 20℃
Remote Controller Distance: Min.15m
System Range: 500~800m (In Open Area)
Telemetry Frequency: 470mhz


Package:
Multi Channel Wireless Load Cell Shackle For Hopper Scale 1Multi Channel Wireless Load Cell Shackle For Hopper Scale 2


Applications:
Suitable for hopper scale, scale, roller scale,continuous casting ladle electronic scale and various special weighing apparatus

Competitive Advantage:
1. We not only provide the weighing device, at the same time to undertake engineering orders, and provide personalized custom services to you.

2. We will work closely with you to analyze your measurement task and design the matching solution. Through rapid engineering (CAD) you get first concepts for your transducer in a short time. Advice on conceptual design is free for you.

3. After having agreed the concept with you, we provide you with a quote for the customized transducer that really meets your unique requirements.

4. We have twenty years of manufacturing experiences, it help us get a prototype of your sensors in a short time.If the prototype meets your requirements, production starts.
