Portable Hot Galvanized Truck Weigh Scales

Portable Hot Galvanized Truck Weigh Scales

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Portable Hot Galvanized Truck Weigh Scales Get Best Price

Product Details:
Place of Origin: China
Brand Name: SKYERSCALE
Certification: CE
Model Number: TB series
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Container loading
Delivery Time: 15~20days
Supply Ability: 80sets/M
Detailed Product Description
Name: Mobile Weighbridge Accuracy: 10kg
Display Type: LCD/LED Power Supply:: 220v/50HZ Or 110V/60HZ
Place Of Origin: China Rated Load: 80t
High Light:

Truck Platform Scales

,

Electronic Truck Scale

3x18m 80t Q235 carbon steel material portable weighbridge with hot galvanized truck weigh scale



Specifications:



1. Weighing Capacity: 10T-200T

2. Structure: U-shape beams

3. Thickness of smooth plate (8-12mm)

Chequer plate optional

4. Painting: Anti rust and anti corrosion painting

5. Accuracy class: OIML(III)

6. Safe Overload: 150%

7. Load cells: KELI or ZEMIC LOAD CELLS

8. With indicator: Yaohua A9P

9. All the screws and tools used for installation has been included in the price



size Length of module QTY of Module Load cell Qty.
3X6 1.5x6m 2 4
3X7 1.5x7m 2 4
3X8 1.5x4m 4 6
3X9 1.5x4.5m 4 6
3X10 1.5x5m 4 6
3X12 1.5x6m 4 6
3X15 1.5x5m 6 8
3X16 1.5x5.33m 6 8
3X18 1.5x6m 6 8





Description:

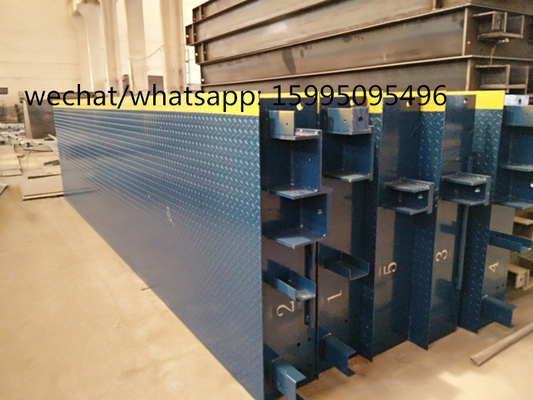

1. Design 6 pieces U beam design

2. U beam thickness design with 6mm

3. Pre camber machine to making platform have a high curves in Middle of platform

4. Auto welding machine to ensure welding is smooth and good strength

5. Shot blasting clean all dirty before painting



1. Optional in platform size, Max. Cap.

2. Optional in load cell, indicator.

3. Optional RS232 interface

4. Optional ramps or rails.

5. Optional big screen.

6. Optional extra printer

7. Optional software

8. Optional computer

9. Optional double shielded cable

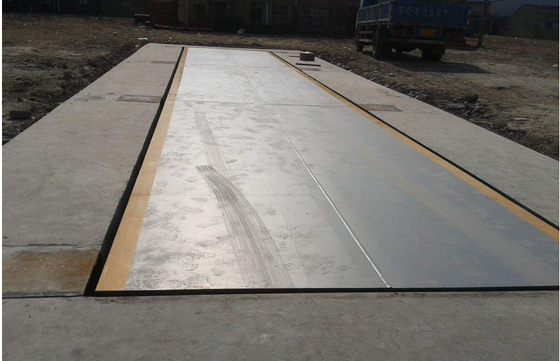

Portable Hot Galvanized Truck Weigh Scales 0

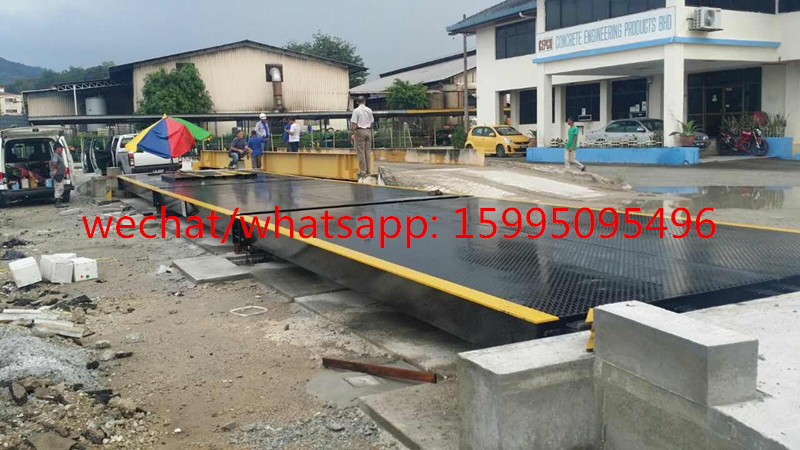

Portable Hot Galvanized Truck Weigh Scales 1

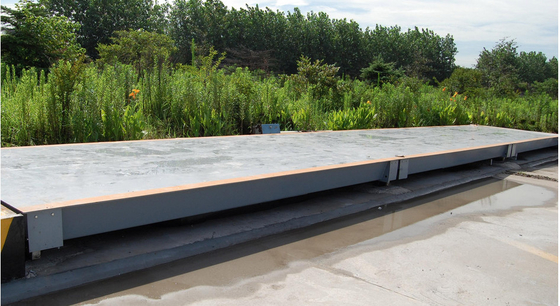

Portable Hot Galvanized Truck Weigh Scales 2



Applications:



1). Weighing

2). Net weight/tare

3). Weight accumulation



Competitive Advantage:



1. We support small orders,fast delivery for customers to save even more valuable time.



2. We have abundant production and export experience ,best price and good quality.



3. We have global market,has been exported to UK, Czech, Latvia,Thailand, ViteNam, Chile,Canada,Philippines,Span etc. various countries around the world.
