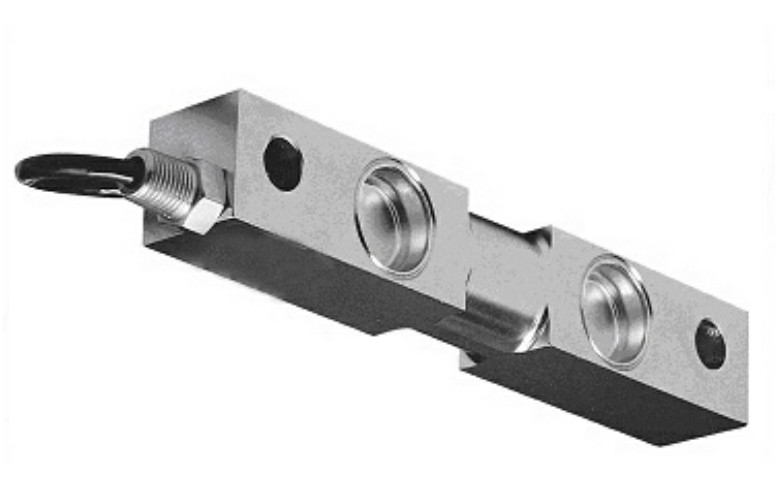

Hermetically Sealed Double Ended Beam Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel ,stainless Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Digital Sensor | Usage: | Pressure Sensor |
| Sealing Class:: | IP67-IP68 | Name: | Beam Type Load Cell |
| High Light: | Beam Type Load Cell,High Accuracy Load Cell |
||
Double ended shear beam load cell onboard truck scale,axle load sensor 1klb~75klb
Description:
Double Ended Beam Load Cells LC106D is a reliable sealing and mechanical protection of the strain gauge area is ensured by the use of potting compound with a metal cover. LC106D digital load cell. Digital output signal (RS-485/4-Wire). Normal load 1~75 Klb. Self-restoring rocker pin. Easy to install. Hermetically sealed. Produce according OIML R60 to 3000d. Over voltage protection.
Applications:
Weighing functions
Specifications:
| Cap/Size | A | B | C | D | E | F | H |
| 1~5KLB | 190.5 | 158.8 | 31 | 31 | 29 | 31.5 | 13 |
| 10~25KLB | 222.3 | 190.5 | 49.3 | 36.5 | 42 | 50.5 | 20.6 |
| 35KLB | 222.3 | 190.5 | 63.5 | 38 | 50 | 63 | 20.6 |
| 50~75KLB | 343 | 292 | 75 | 62 | 83 | 76.2 | 33.3 |
Dimensions:Unit: mm
| Rated Load: | 1~75klb | Insulation Resistance: | ≥5000MΩ |
| Rated Output: | 1000000 | Operating Temp. Range: | -30~+70℃ |
| Baud Rate:: | 9600 Baud | Maximum Safe Over Load: | 150%F.S |
| Measuring Rate: | 80/sec | Ultimate Over Load: | 250%F.S |
| Communication Mode: | RS485/4-wire | Recommend Excitation Vol.: | 10~12V DC |
| Combined Error: | ±0.03% F.S | Maximum Excitation Vol.: | 15V DC |
| Creep Error(30min): | ±0.02% F.S | Sealing Class: | IP67/IP68 |
| Zero Balance: | ±1% F.S | Element Material: | Alloy /Stainless Steel |
| Temp. Effect On Zero: | ±0.017% F.S/10℃ | Cable: | Length=13m |
| Temp. Effect On Span: | ±0.017% F.S/10℃ | Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) | ||
Competitive Advantage:
1. Professional manufacturer with 10 years
2. OEM/ODM service acceptable
3. 100% inspection
4. Warranty: one year
