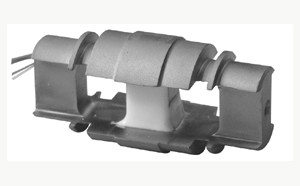

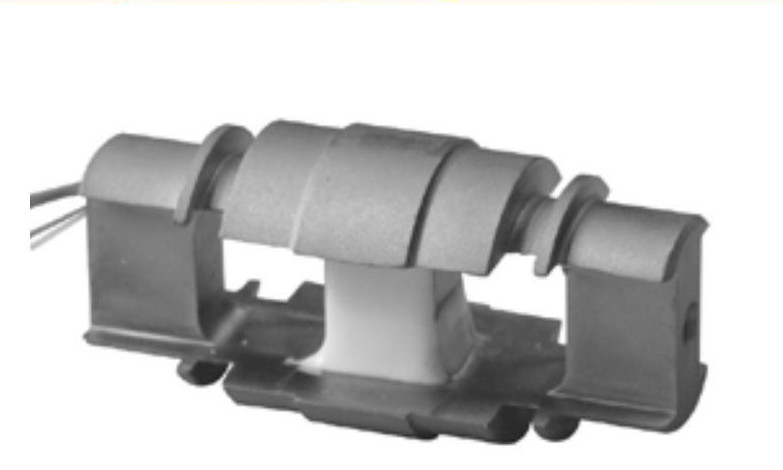

Anti Corrosion Aluminum 30KN Single Point Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Aluminum Single Point Load Cell | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Material: | Aluminum |
| Usage: | Pressure Sensor | Safe Overload: | 120% F.S. |
| High Light: | High Accuracy Load Cell,Tension Link Load Cell |
||
Aluminum weighing single point Load Cell AM006 Load sensor 30KN
Applications:
Alumium construction with parallel beam.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Intergral structure and easy installation.
Suitable for pricing scale, platform scale and other electronic weighing devices.
Technical Parameter:
| Model | AM006 | Temp.Effect on Output | ±0.05%F.S/10℃ |
| Capacity | 30kN | Zero Output | ±0.1%F.S |
| Comprehensive Error | 0.3 | Input Resistance | 1030±10Ω |
| Output Sensitivity | 1.2±0.2mV/V | Output Resistance | 1000±10Ω |
| Non-linearity | ±1%F.S | Insulation Resistance | ≥2000MΩ (50V) |
| Repeatability | ±1%F.S | Excitation Voltage | ≤10V |
| Hysteresis | ±1%F.S | Operation Temp.Range | -10--+40℃ |
| Creep | ±0.05(5min)%F.S | Overload Capacity | 150%F.S |
| Temp.Effect on Zero | ±0.3%F.S/10℃ | Recommended Use | Drilling stress measuring |
Competitive Advantage:
1. your inquiry and e-mai will be replied within 12 hours.
2. If you need to develop product with your own specification, we have professional engineers to work it out.
3. Never leave customer alone, solve problems with customer together.
4. Customer first, quality first, service first!
