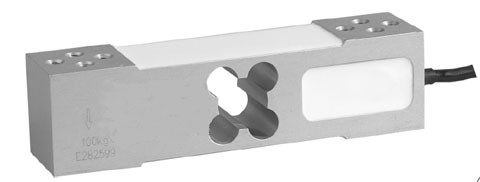

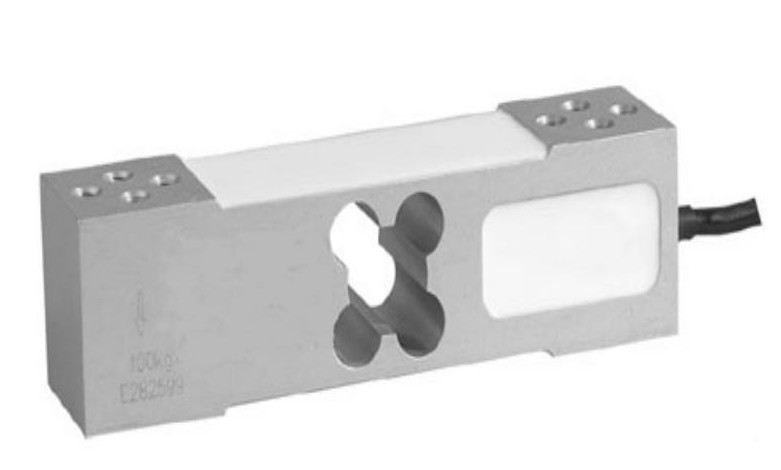

Electronic Strain Gauge Single Point Weighing Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Digital Single Load Cell | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Usage: | Weighing Scale |
| Platform Scale Size: | 400x400 Mm | Material: | Aluminum |
| High Light: | Beam Type Load Cell,Tension Link Load Cell |
||
Single point platform scale L6E electronic strain gauge 50kg 60kg 100kg 300kg load cell
Description:
1. AM6EZ load cells are available in the capacities 50~300kg .And the customized capacity is available by request.
2. Aliminum construction,making it in all kinds of environments.
3. good self-aligning ability, suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.

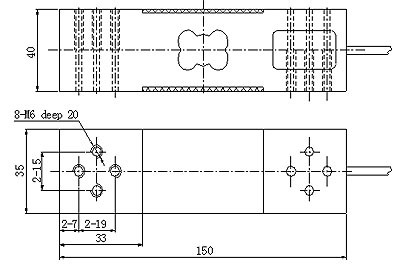

Specifications:
| Rated Load: | 50/60/80/100/150/200/300kg | ||
| Sensitivity: | (2.0±0.1%) mV/V | Insulation Resistance: | ≥5000MΩ |
| Combined Error: | ±0.03% F.S | Operating Temp. Range: | -30~+70℃ |
| Creep Error(30min): | ±0.03% F.S | Max. Safe Over Load: | 150%F.S |
| Zero Balance: | ±1% F.S | Ultimate Over Load: | 200%F.S |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Recommend Excitation Vol.: | 10~12V DC |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Max. Excitation Voltage: | 15V DC |
| Input Resistance: | 385±5Ω | Sealing Class: | IP65 |
| Output Resistance: | 353±2Ω | Element Material: | Aluminum |
| Citation: | GB/T7551-2008/ OIML R60 | Cable: | Length=L:3m |
Applications:
Electronic scale, Platform scale, pricing scale, fore test equipment
Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well.
2. OEM Accepted : We can produce any your design .
3. Good Service : We treat clients as friend.
4. Good Quality :We have strict quality control system .Good reputation in the market.
5. Fast & Cheap Delivery: We have big discount from forwarder
