Platform Scales Single Point Weighing Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Aluminum | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Usage: | Weighing Scale |
| Operating Temperature Range: | -35-+80 ℃ | Precision: | C2 / C3 |
| Recommended Excitation Voltage: | 10-15V | Combined Error: | ≤±0.02% RO |
| High Light: | Beam Type Load Cell,High Accuracy Load Cell |
||

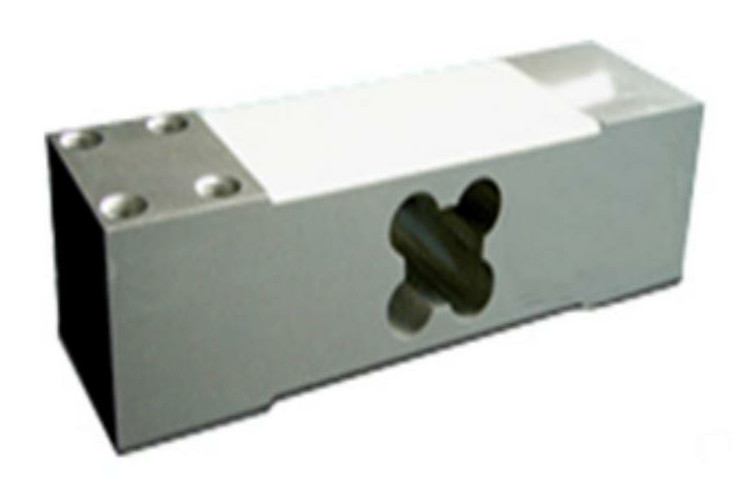

Aluminum single point load cell AM649D(keli UDN,zemic L6E3) from 100kg to 500kg for platform scales
Specifications:
| Rated Load: | 60/100/150/200/250/300/350/500kg | ||
| Comprehensive Error: | 0.017&0.02%F.S | Insulation Resistance: | ≥5000MΩ(100VDC) |
| Rated Output: | 2±0.1mV/V | Excitation Voltage: | 9VDC~12VDC |
| Non-Linearity: | 0.017&0.02%F.S | Compensated Temp. Range: | -10℃~+40℃ |
| Hysteresis: | 0.017&0.02%F.S | Use Temp. Range: | -20℃~+60℃ |
| Repeatability: | 0.01%F.S & 0.02%F.S | Temp. Effect On Zero: | 0.017&0.03%F.S/10℃ |
| Creep: | & 0.02%F.S/10min | Temp. Effect On Span: | 0.014&0.02%F.S/10℃ |
| Zero Balance: | ±1%F.S | Safe Overload: | 120% |
| Input Resistance: | 405±10Ω | Ultimate Overload: | 150% |
| Output Resistance: | 350±3Ω | Defense Class: | IP65 |
Description:

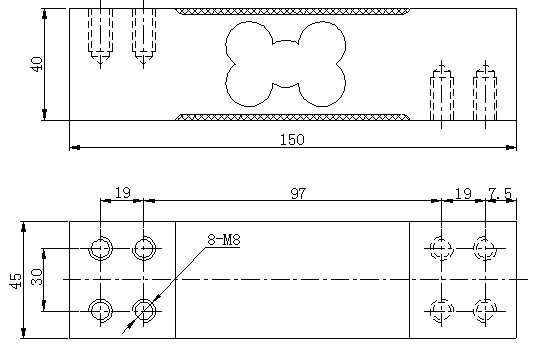

Size: 150x40x45(mm) Thread hole:8-M8
It uses 4-core shielded cable (φ5×1500mm). The length of the cable can be adjusted according to clients' request, but we suggest to use this standard length to ensure the output precision
Applications:
Electronic scale, Platform scale, pricing scale, fore test equipment
Competitive Advantage:
1. High quality and Durable,Competitive Price
2. OEM Accepted : We can produce any your design .
3. 3. Good Service and Adequate Stock
4. 4. Good Quality :We have strict quality control system .Good reputation in the market.
5. 5. Convenient Transportation and fast delivery
