Overload Protection Digital Weighbridge Indicator Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Digital Sensor | Usage: | Pressure Sensor |
| Sealing Class:: | IP67-IP68 | Name: | Weight Indicator Load Cell |
| High Light: | High Accuracy Load Cell,Tension Link Load Cell |
||

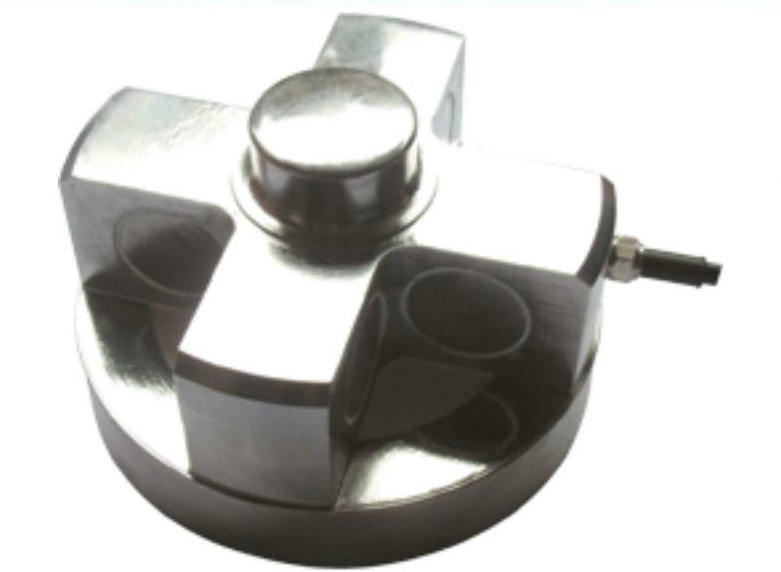

Digital Weighbridge Senor/DHT Based Electric Chain Hoist 30t
Description:
Stronger four-direction side force resistance and overload protection capacity. Moisture proof seal, ideal for hostile environment, Simple to install, good interchangeability. Suitable for various truck scale, railroad scale, etc.
Specifications:
| Rated Load: | 10/20/30t | Operating Temperature Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation Vol.: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation Voltage: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy Steel, Stainless Steel |
| Input Resistance: | 750±5Ω | Cable: | Length=L:12m |
| Output Resistance: | 701±2Ω | Citation | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection | Red(Input+),Black(Input-),Green(Output+),White(Output-) |
Applications:
Suitable for various truck scale, weighbridge,railroad scale, etc.
Competitive Advantage:
1. We support small orders,fast delivery for customers to save even more valuable time.
2. We have abundant production and export experience ,best price and good quality.
3. We have global market,has been exported to Chile, UK, Czech, Latvia,Thailand, ViteNam, Chile,Canada,Philippines,Span etc. various countries around the world.
