High Precision 200klb Compression Load Cell For Weighing Scale
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Type: | Compression Type |
| Name: | Weighing Load Cell | ||
| High Light: | Beam Type Load Cell,High Accuracy Load Cell |
||
High-precision compression weighing load cell 200klb
Description:

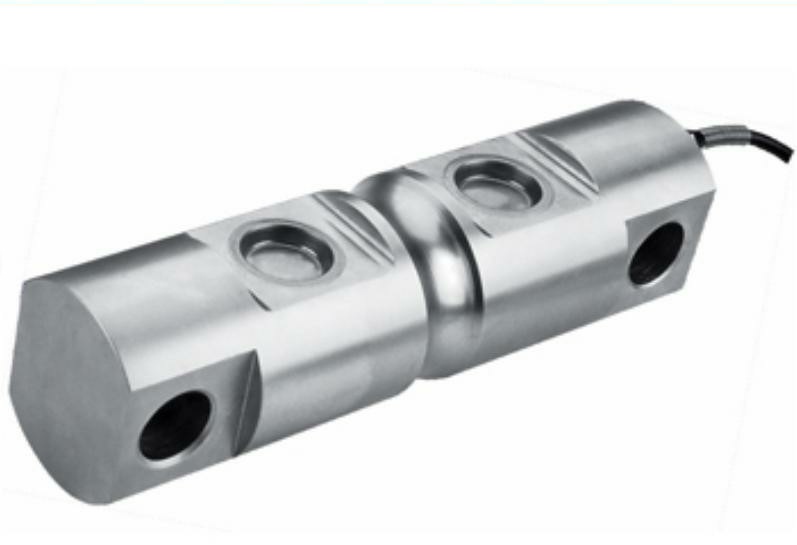

1. LC101 load cell are available in the capacities 5Klb to 200Klb.
2. Alloy steel construction,potted by adhesive inside, oil-proof,waterproof anti-corrosive gas or medium making it suitable for all kinds of environments.

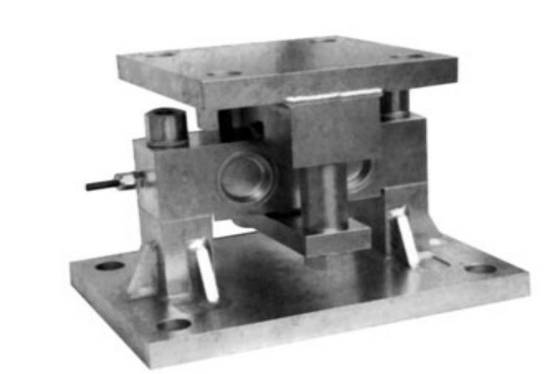

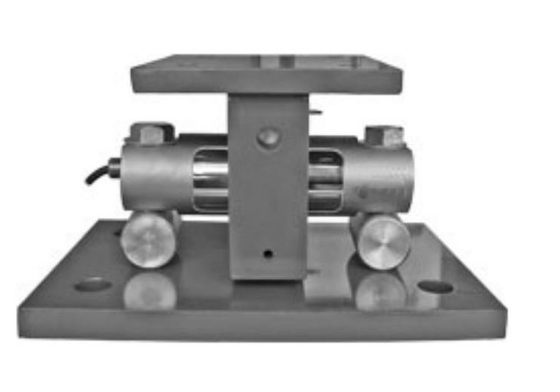

3. Dual shear beam,easy installation, suitable for electronic truck scales, track scales,automobile testing facilities and other electronic weighing devices.
Applications:
Weighing functions
Competitive Advantage:
1. High accuracy.
2. Stainless steel construction.
3. Four columns construction.
4. Easy installation and reliable performance.
Specifications:
| Rated Load: | 5/10/20/30/60/100/150/200klb | ||
| Sensitivity: | (2.0±0.1%) mV/V | Operating Temp. Range: | -30~+70℃ |
| Combined Error: | ±0.03% F.S | Maximum Safe Over Load: | 150%F.S |
| Creep Error(30min): | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Zero Balance: | ±1% F.S | Recommend Excitation: | 10~12V DC |
| Tco: | ±0.02% F.S/10℃ | Maximum Excitation: | 15V DC |
| Tc Span: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Input Resistance: | 750±5Ω | Element Material: | A: Alloy Steel, SS: Stainless Steel |
| Output Resistance: | 703±2Ω | Cable: | Length=L:12m |
| Insulation Resistance: | ≥5000MΩ | Citation: | GB/T7551-2008/ OIML R60 |
| Mode Of Connection: | Red(Input+),Black(Input-),Green(Output+),White(Output-) | ||
