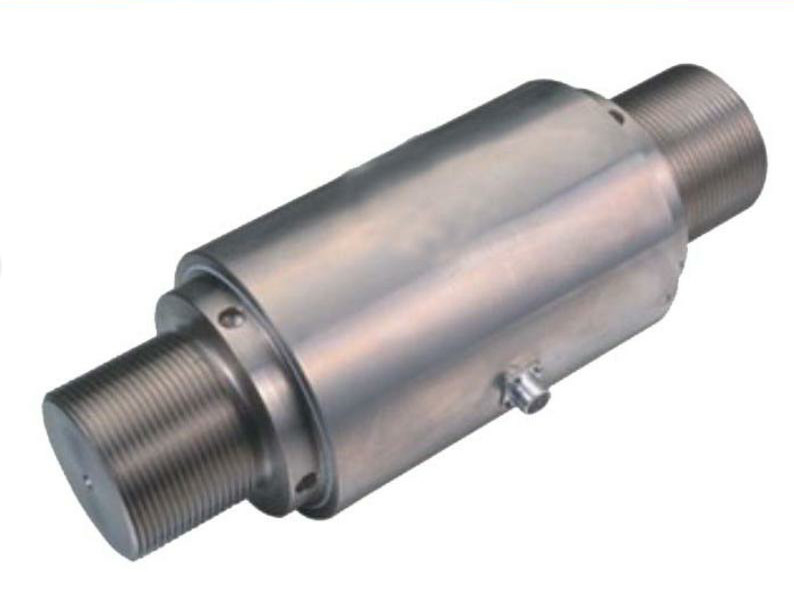

Two Way 3000KN Multi Column Tension And Compression Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Type: | Column Type |
| Name: | Load Cell For Weighing Scale | ||
| High Light: | High Accuracy Load Cell,Tension Link Load Cell |
||
Tension and Compression Two-way 3000KN Multi Column Load Cell
Description:
1. Alloy or stainless stel structure
2. Super miniature load cell
3. Specially made for force measuring with limited space
4. Application to truck scale, railway scale, axle scale, storage scale and other weighing equipment.
Applications:
Weighing parts
Specifications:
| Size/Capacity | D | D1 | L | L1 | M |
| 3000kN | 215 | 188 | 440 | 120 | M170×6 |
| 4000kN | 240 | 214 | 440 | 120 | M180×6 |
| 5000kN | 265 | 230 | 440 | 120 | M200×6 |
| 6000kN | 265 | 230 | 440 | 120 | M220×6 |
| Capacity: | 0.1% | Insulation Resistance: | >2000MΩ |
| Accuracy: | 2m V/V | Temperature Effect On Sensitivity: | <0.05%FS/10℃ |
| Non-linearity: | ≤0.1%FS | Temperature Effect On Zero Balance: | <0.05%FS/10℃ |
| Repeatability: | ≤0.05%FS | Reference Excitation Voltage: | 10V(DC) |
| Hysteresis: | ≤0.1% | Nominal Range Of Excitation Vol.: | 6~12V(DC) |
| Input Resistance: | 380Ω | Service Temperature Range: | -30~70℃ |
| Output Resistance: | 350Ω | Safe Load Limit: |
120%FS
|
Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well;
2. Good Service: We treat clients as friends;
3. High Quality: We have strict quality control system. Good reputation in the market.
