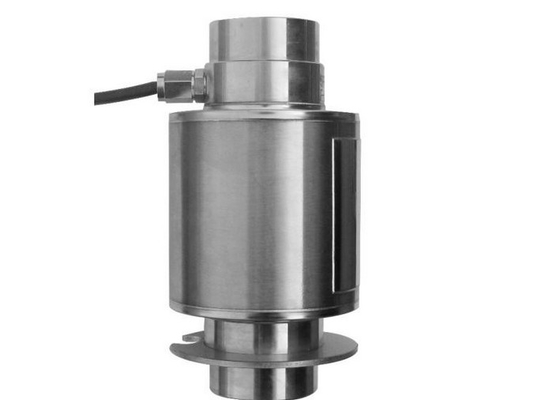

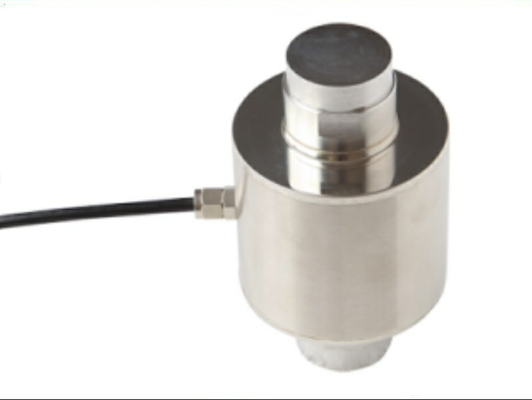

Truck Scale Column Type 30 Tons Weighing Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Type: | Column Type |
| High Light: | Beam Type Load Cell,Tension Link Load Cell |
||
ZSF Column type Chinese weight sensor truck scale 30 ton weighing load cell
Description:
1. We offers two models of compression load cell (also known as canister or rocker column load cells).
2. These are ideal when high accuracy is required in truck scales (or weighbridges), railway scales, tank and silo weighing applications, and gravimetric level measurement.
Specifications:
| Rated Load: | 15/30/50t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) m V/V | Maximum Safe Over Load: | 150%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 250%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Tco: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Tc Span: | ±0.02% F.S/10℃ | Element Material: | Alloy /Stainless Steel |
| Input Resistance: | 450±5Ω | Cable: | Length=15m |
| Output Resistance: | 481±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: |
Red(Input+),Green(Output+), Black(Input-),White(Output-) |
Applications:
Truck scale,railway scale, acle-load scale, floor scale
Competitive Advantage:
1. Service standards: we are committed to provide a high quality and responsive service to all clients
2. The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced online chating tool within 24 hours. If our trade manager is off line, please leave a message, and tell us the product model you need and your E-mail address.
3. Quality assurance: good quality is assured by advanced manufacturing technology. And all products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 3--5 working days to reach from from our side to your side, which is very convenient for your business
4. OEM available
