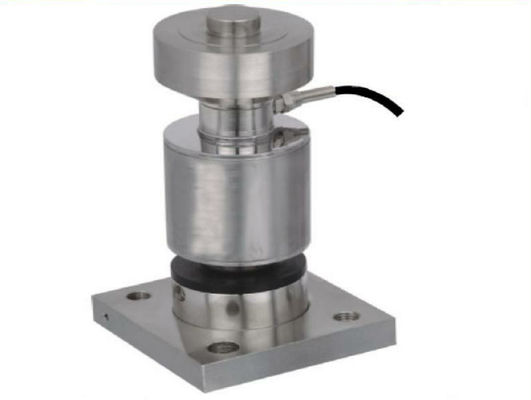

Column Type Low Profile 60 Tons Compression Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel Or Stainless Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Type: | Column Type |
| Comprehensive Error (%F.S): | ±0.03/±0.02 | Ultimate Overload (%F.S): | 300 |
| High Light: | Beam Type Load Cell,High Accuracy Load Cell |
||
compression column alloy steel 60t load cell pressure sensor
Description:

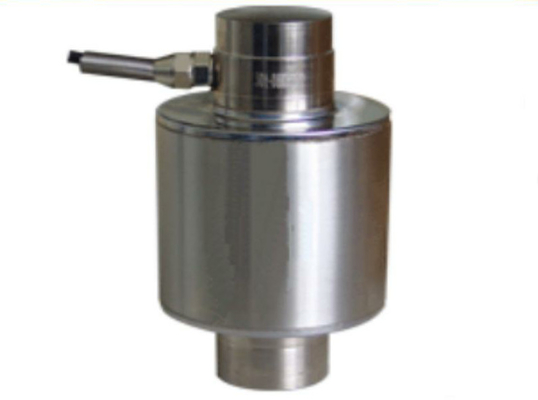

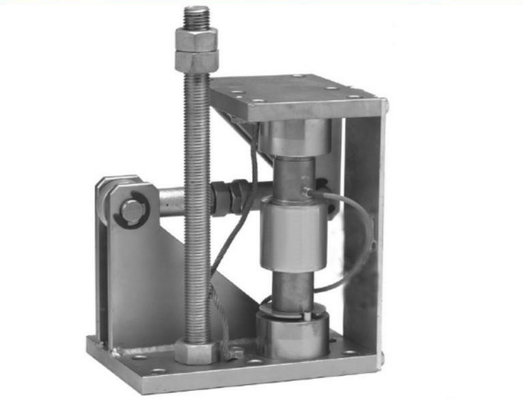

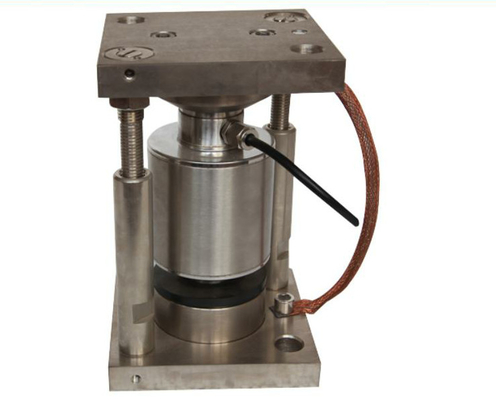

1. Load cells &weigh modules LC404M is a column, low profile, compression load cell.
2. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. 3.The fully leak-tested welded construction, advanced cable entry and built-in surge protection tubes ensure this product can be used successfully in harsh environments.
3. This product meets the stringent weights and measures requirements.
4. This product is suitable for use in road and rail weighbridges and process weighing applications, truck and rail weighbridges, silo and hopper weighing, process weighing and weighing equipment
Specifications:
| Rated Load: | 10/20/25/30/40/50/60t | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 300%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12VDC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | -Alloy / Stainless Steel |
| Input Resistance: | 750±5Ω | Cable: | Length=13m |
| Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: |
Red(Input+),Green(Output+, Black(Input-),White(Output-) |
Applications:
Suitable for proportioning control system, detecting equipment and other weighing devices
Competitive Advantage:
1. High accuracy.
2. Stainless steel construction.
3. Four columns construction.
4. Easy installation and reliable performance.
