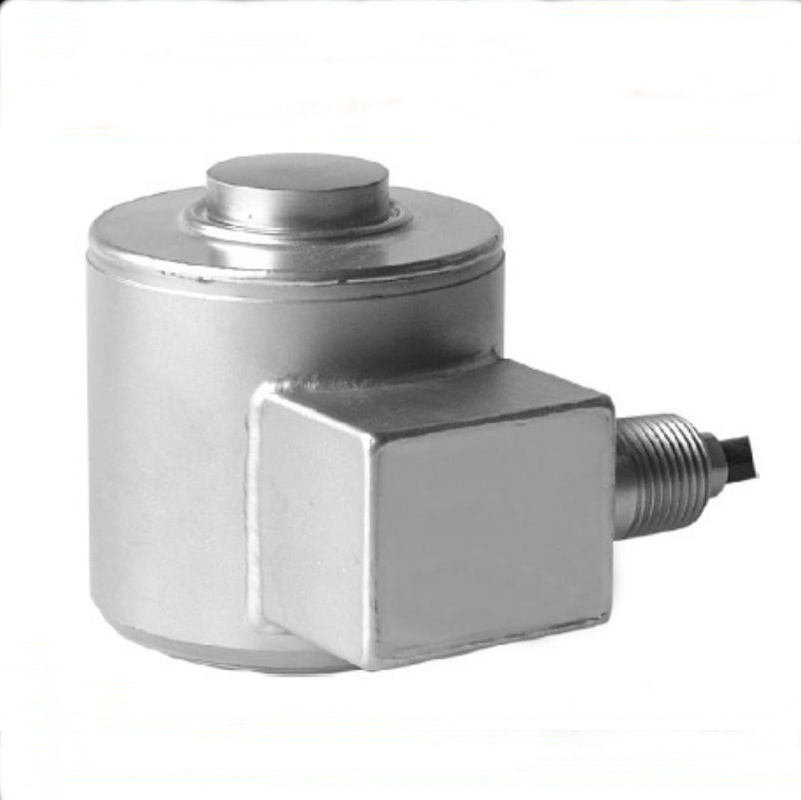

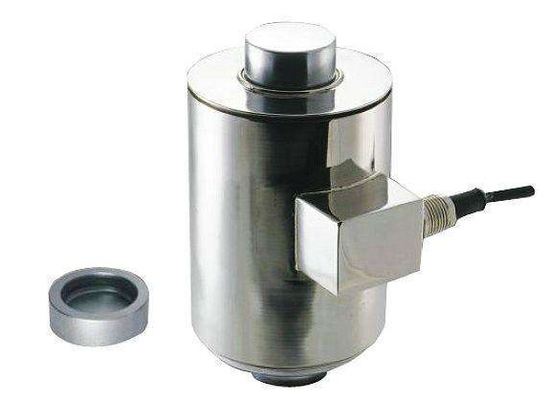

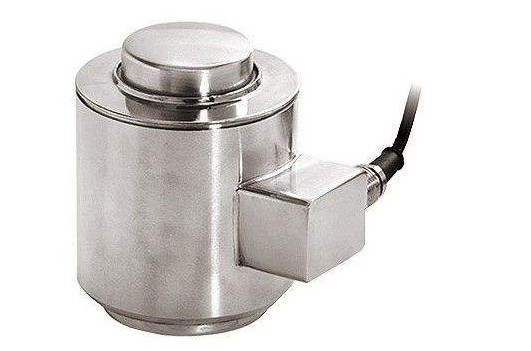

High Accuracy Alloy Steel Column Weighing Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Name: | Column Type Load Cell |
| Cable Length: | 12m(10~50t),16m(60~200t) | Recommended Excitation Voltage: | 10V~12V |
| High Light: | Beam Type Load Cell,High Accuracy Load Cell |
||
Hot Sale High Accuracy Alloy Steel Column 20t,40t,50t,100t weighing Load Cell
Description:
1. LC401 load cells are available in the capacities 10t to 100t and 10Klb to 500Klb.And the customized capacity is available by request.
2. Alloy Steel and Stainless steel construction,hermetically welded,oil-proof, waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments.
3. Column structure, good self-aligning ability, suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
Specifications:
Dimensions Unit: mm
| Cap./Size | A | B | C | D | E | F | G | H | M | SR | ||||
| 10~25t | 73 | 82.5 | 12 | 58 | 6.5 | 1.8 | 64 | 31.8 | M12x1.75 | 152 | ||||
| 40~60t | 105 | 127 | 34 | 82.5 | 8.0 | 11.0 | 87 | 58.7 | M20x2.5 | 152 | ||||
| 100t | 152.4 | 184.2 | 72.3 | 123.8 | 23.6 | 21.8 | 108.2 | 79.2 | M20x2.5 | 432 | ||||
| Rated Load: | 10/25/40/60/100t | Operating Temp. Range: | -30~+70℃ | |||||||||||
| Sensitivity: | (2.0±0.1%) mV/V | Maximum Safe Over Load: | 150%F.S | |||||||||||
| Combined Error: | ±0.05% F.S | Ultimate Over Load: | 250%F.S | |||||||||||
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC | |||||||||||
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC | |||||||||||
| Tco: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 | |||||||||||
| Tc Span: | ±0.02% F.S/10℃ | Element Material: | A: Alloy Steel, -SS: Stainless Steel | |||||||||||
| Input Resistance: | 450±5Ω | Cable: | Length=16m(10/25/40t), 20m(60/100t) | |||||||||||
| Output Resistance: | 481±2Ω | Citation: | GB/T7551-2008/ OIML R60 | |||||||||||
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: |
Red(Input+),Black(Input-), Green(Output+),White(Output-) |
|||||||||||
Applications:
Simple to install, easy to use, good interchangeability suitable for electronic truck scale, railroad scale, hopper scale and various special scales.
Competitive Advantage:
1. 24Hr for response time.
2. 5-7days for sample time.
3. 15-25days for delivery time.
4. 12 months for quality assurance time.
5. ODM, OEM support
