Argon - Arc Welded Truck Weigh Scales 50t Column Type Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel Or Stainless Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Type: | Column Type |
| Sealing Class: | IP67-68 | Usage: | Pressure Sensor |
| High Light: | High Accuracy Load Cell,Tension Link Load Cell |
||

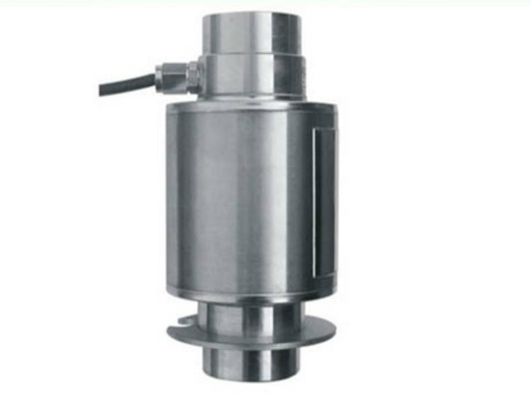

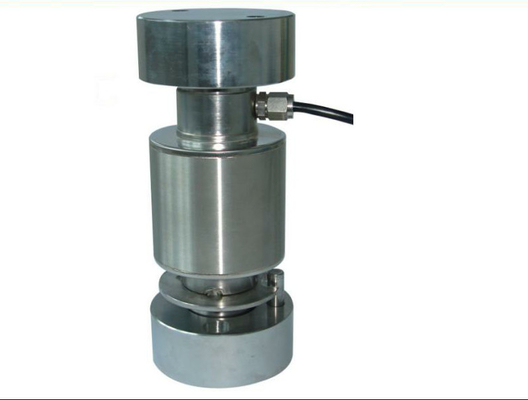

Argon-arc welded truck weighing scale column weighing load cell 50t
Specifications:
Features:
◎ Self-restoring rocker pin load cell.

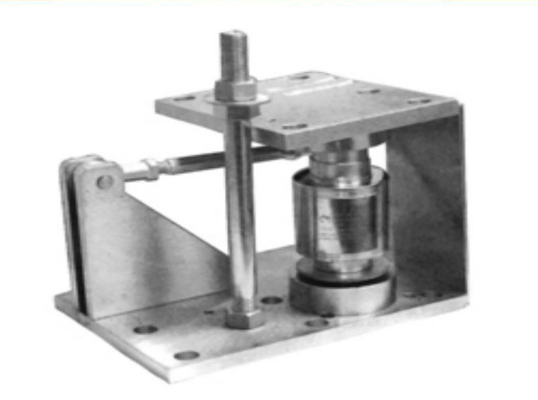

◎ Upper and lower inhibitor design, easy to installation.
◎ Dynamic respond, and super capacity for anti-overload.
◎ Application to truck scale, railway scale, axle scale, storage scale and other weighing equipment.
Technical Parameter:
| Rated Load: | 10/15/20/30/40/50t | Operating Tem. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) mV/V | Max. Safe Over Load: | 150%F.S |
| Combined Error: | ±0.03% F.S | Ultimate Over Load: | 250%F.S |
| Creep Error(30min) | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.017% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.017% F.S/10℃ | Element Material: | -Alloy /Stainless Steel |
| Input Resistance: | 750±5Ω | Cable: | Length=12m |
| Output Resistance: | 702±2Ω | Citation: | GB/T7551-2008/ OIML R60 |
| Insulation Resistance: | ≥5000MΩ | Mode Of Connection: |
Red(Input+),Green(Output+), Black(Input-),White(Output-) |
Description:
1. Dynamic respond, and super capacity for anti-overload.
2. Application to truck scale, railway scale, axle scale, storage scale and other weighing equipment.
Applications:
Simple to install, easy to use, good interchangeability suitable for electronic truck scale, railroad scale, hopper scale and various special scales.
Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well;
2. Good Service: We treat clients as friends;
3. High Quality: We have strict quality control system. Good reputation in the market.
