2000KN 3000KN Calibration Standard Weighing Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Usage: | Weighing Scale |
| High Light: | High Accuracy Load Cell,Tension Link Load Cell |
||

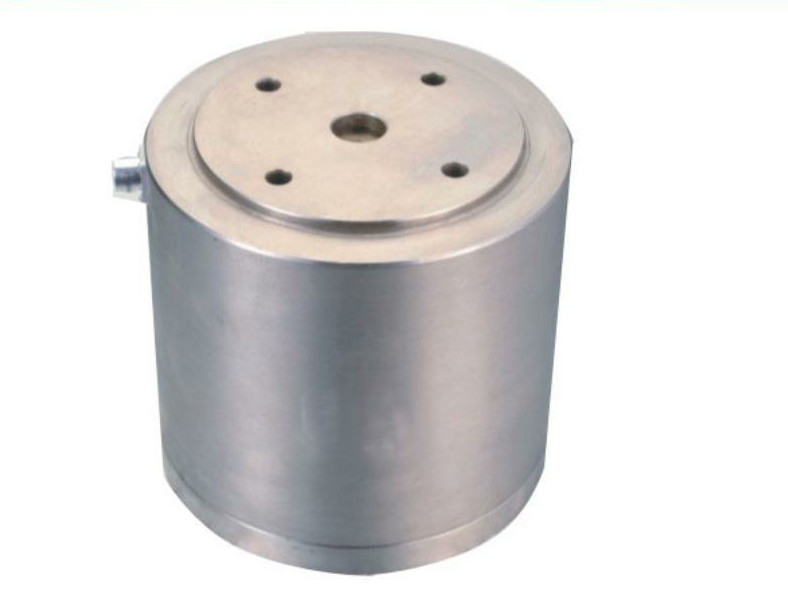

Compression load cell 2000KN 3000KN Calibration Standard weighing Load Cell
Specifications:
Note: A choice location at the outlet or B
| Cap. / Size | D | D1 | D2 | D3 | d | L | L1 | L2 | H | M | ||||
| 1000/2000kN | 130 | 100 | 106 | 80 | 25 | 170 | 90 | 5 | 8 | 4-M10 | ||||
| 3000kN | 160 | 140 | 123 | 90 | 20 | 153 | 65 | 5 | 8 | 4-M10 | ||||
| Capacity: | 1000/2000/3000kN | |||||||||||||
| Accuracy: | 0.1%FS | Insulation Resistance: | ＞2000MΩ | |||||||||||
| Sensitivity: | 2.0 m V/V | Temperature Effect On Sensitivity: | ＜0.1%FS/ 10℃ | |||||||||||
| Non-Linearity: | ≤0.1%FS | Temperature Effect On Zero Balance: | ＜0.1%FS/ 10℃ | |||||||||||
| Repeatability: | ≤0.05%FS | Reference Excitation Voltage: | 10V (DC) | |||||||||||
| Hysteresis: | ≤0.1%FS | Nominal Range Of Excitation Voltage: | 6~12V(DC) | |||||||||||
| Input Resistance: | 760Ω | Service Temperature: | -30~70℃ | |||||||||||
| Out Resistance: | 700Ω | Safe Load Limit: | 120%FS | |||||||||||
Description:
1. Dynamic respond, and super capacity for anti-overload.
2. Application to truck scale, railway scale, axle scale, storage scale and other weighing equipment.
Applications:
Truck and rail weighbridges, silo and hopper weighing, process weighing and weighing equipment, digital truck scale, axle scale, digital railway scale, explosion-proof truck scale, fully automatic truck scale, car scale, construction truck weighing scale.
Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well;
2. Good Service: We treat clients as friends;
3. High Quality: We have strict quality control system. Good reputation in the market.
