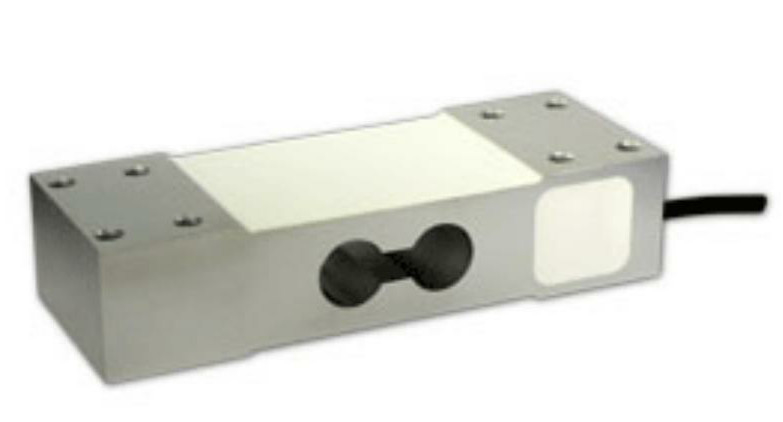

500kg 750kg 1000kg Single Point Parallel Beam Weighing Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Single Point Weighing Sensor | Theory: | Resistance Sensor |
|---|---|---|---|
| Output: | Analog Sensor | Usage: | Weighing Scale |
| Structure: | Single Point Parallel Beam Load | Material: | Aluminum |
| High Light: | High Accuracy Load Cell,Tension Link Load Cell |
||

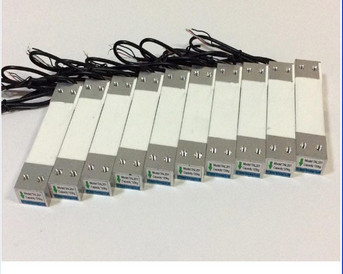

Single point parallel beams weighing load cell 500kg 750kg 1000kg used in bench scale
Description:
Size: 192x43x76(mm) Thread hole: 8-M8
It uses 4-core shielded cable(φ5x3000mm).
The length of the cable can be adjusted according to clients' request, but we suggest to use this standard length to ensure the output precision.
Specifications:
| Rated Load: | 100/200/300/500/750/1000kg | Output Resistance: | 350±3Ω |
| Comprehensive Error: | 0.017%F.S & 0.02%F.S | Excitation Voltage: | 9VDC~12VDC |
| Rated Output: | 1±0.1 & 2±0.1mV/V | Compensated Temp. Range: | -10℃~+40℃ |
| Non-Linearity: | 0.017%F.S & 0.02%F.S | Use Temp. Range: | -20℃~+60℃ |
| Hysteresis: | 0.017%F.S & 0.02%F.S | Temp. Effect On Zero: |
0.017%F.S/10℃ & 0.03%F.S/10℃ |
| Repeatability: | 0.01%F.S & 0.02%F.S | Temp. Effect On Span: |
0.014%F.S/10℃ & 0.02%F.S/10℃ |
| Creep: |
0.017%F.S/30min & 0.02%F.S/10min |
Safe Overload: | 120% |
| Zero Balance: | ±1%F.S | Ultimate Overload: | 150% |
| Input Resistance: | 405±10Ω | Defense Class: | IP65 |
Applications:
General Weighing
Weighing parts
Competitive Advantage:
1. High quality and Durable,Competitive Price
2. OEM Accepted : We can produce any your design .
3. 3. Good Service and Adequate Stock
4. 4. Good Quality :We have strict quality control system .Good reputation in the market.
5. 5. Convenient Transportation and fast delivery
