40T Rated Load Ultra Thin Portable Axle Weighing Scales
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Portable Axle Weighing Scale | Type: | Axle Scale |
|---|---|---|---|
| Display Type: | 100~240V | Model Number: | AS002 |
| Use: | Weigh The Weight Of The Product | Market: | All Over The World |
| Rated Load: | 1/2/3/5/6/10/20/30/40T |

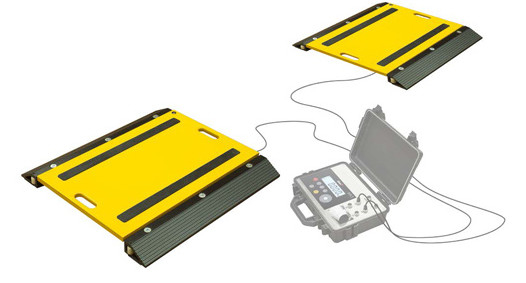

Portable Axle Weighing Scale Pads with Indicator Electronic Truck Scale 1~40T hot sales strong structure

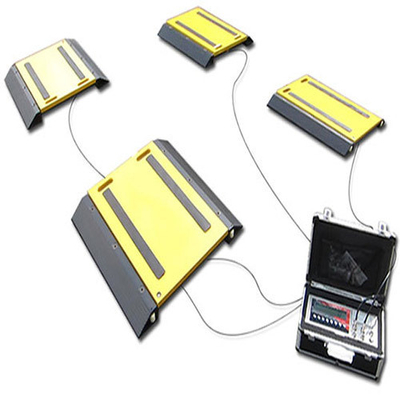

Aluminum-alloy; Ultra thin weigh pad design; ESKily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to meSKure axle weight and whole vehicle weight when two or four weigh-pad connected together.
Features:
1): two separate calibration of the weighing platform, with a 10-point amendment to greatly improve the accuracy of the product.
2): The floating zero and zero tracking technology, the complete elimination of zero drift.
3): Figures of the menu operation, simple and clear.
Outline Dimension (mm):
Configuration Table:
| Model |
Size(A×B×C) (mm) |
Capacity (Per Weigh Pad) |
Description(Each Pad) | |
| AS002 | 300×400×35 | 500/1000/1500Kg |
4pcs SQB LoadCell,10m Cable Capacity:500/1000/1500Kg |
|
| 400×500×58 | 1500/2500/3000/Kg |
4pcs SQB LoadCell,10m Cable Capacity:1500/2500/3000Kg |
||
| 400×500×58 | 5000Kg |
4pcs SQB LoadCell,10m Cable Capacity:5000Kg |
||
| 450×700×58 | 5000/10000/15000Kg |
6pcs SQB LoadCell,10m Cable Capacity:5000/10000/15000Kg |
||
| 500×900×58 | 10000/15000/20000/25000Kg |
6pcs SQB LoadCell,10m Cable Capacity:10000/15000/200000Kg |
||
| Product Parameters | ||||
| Rated load:1/2/3/5/6/10/20/30/40T | Compensated temp.range(℃): -10~+50 | |||
| Dynamic error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 | |||
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) | |||
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 | |||
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 | |||
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 | |||
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 | |||
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 | |||
| Excitation voltage(VDC): 9~15 | Net weight(kg): 45 | |||
| Recommended voltage(V): 10 | Defend grade: IP66 | |||

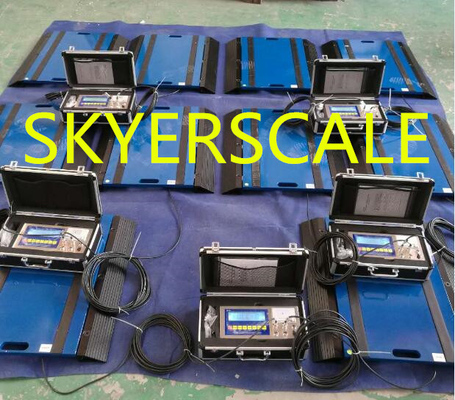

Details display:

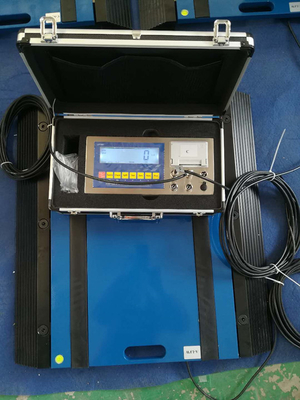

The Multichannel Weighing Indicator
MWI01 Multichannel Weighing Indicator
◎The Aluminum aviation housing, multi window display
◎1~4 channel input, axle load, wheel weight, gross weight and percentage weight
◎The built-in printer, optional rechargeable battery
◎The RS232/RS485 communication interface
| Type | Picture | Description | Housing | Display |
| MWI01 | |
◎Multichannel Weighing Indicator ◎Lead acid battery |
Flight case | LCD |
