Wireless Portable Truck Axle Scales With Touch Screen Indicator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Axle Scale, Aluminum Pad | Power Supply: | 220V/50HZ |
|---|---|---|---|
| Display Type:: | LCD Or LED, LCD | Safe Overload:: | 120%FS |
| Material: | Aluminum | Accuracy: | 10kg,5kg-20kg |
| High Light: | Truck Axle Scales,Portable Vehicle Scales |
||

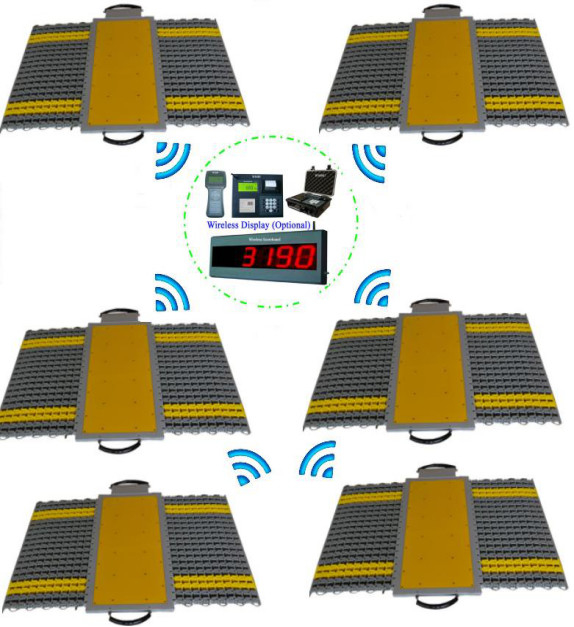

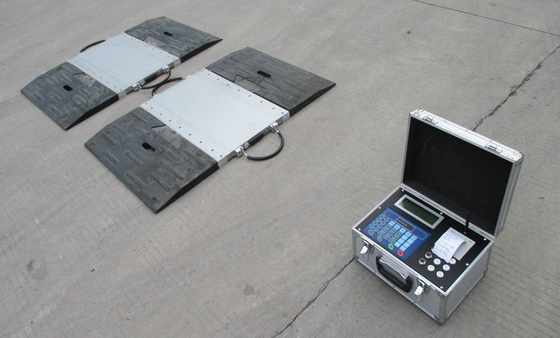

1-50 ton 6pcs Wireless Portable Axle Truck Scale digital balance with Touch Screen Indicator
Specifications:
AWW-1 weighing pad (The weighing pad’s model can be changed according to customer’s request)
| Wireless Specification | |||
| A/D conversion method | Σ-Δ 24bit | ||
| Input signal range | –19.5mV~19.5mV | ||
| Load cell excitation | DC 5V | ||
| Max. connection number of load cell | 1~4 | ||
| Load cell connection mode | 4 wire | ||
| Operating temperature | -10 °C ~40 °C | ||
| Allowable working temperature | -40 ° C ~ 70 ° C | ||
| Wireless transmission frequency | 430MHz to 470MHz | ||
| Wireless transmission distance | 300 meters (In Open Place) | ||
| Weighing Pad Product Parameters | |||
| Rated load:10/15/20T | Compensated temp.range(℃): -10~+50 | ||
| Dynamic error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 | ||
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) | ||
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 | ||
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 | ||
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 | ||
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 | ||
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 | ||
| Excitation voltage(VDC): 9~15 | Net weight(kg): 45 | ||
| Recommended voltage(V): 10 | Defend grade: IP66 | ||
| Dynamic comprehensive error(%F.S): 1.5 (1~5km/h) 3 (5~10km/h) | |||
Outline dimension:
Description:

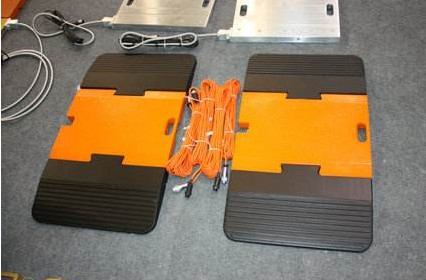

Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.
Applications:
1. Weighing and load control of loading truck in road transportation, construction, agriculture, forestry, and dustbin disposal.
2. Weighing of loading truck by executive enforcement units.
3. Test weight and center of gravity of aero-plane.
4. Weighing automobile wheel and axle load distribution in automobile production line.
5. Stability test of special automobile, such as fork-lift truck, crane.
Competitive Advantage:
1. Super high intension aluminum alloy for aviation.
2. High accuracy load cells with protective foundation.
3. High quality military-level oxidation.
4. Stronger inner structure.
