Digital Aluminum Alloy Wireless Portable Axle Scales
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Power Supply: | 220V/50HZ | Display Type:: | LCD Or LED, LCD |
|---|---|---|---|
| Safe Overload:: | 120%FS | Material: | Aluminum Alloy |
| Load Cell Excitation: | DC 5V | Type: | Axle Scale, Aluminum Pad |
| High Light: | Truck Axle Scales,Portable Vehicle Scales |
||

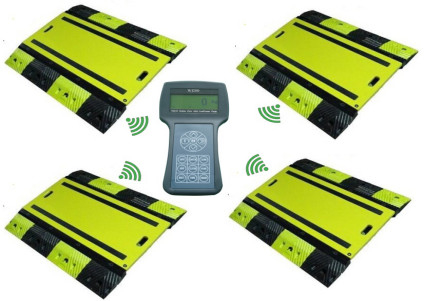

4PCS wireless Wheel Axle Weigh System,Portable Axle Digital vehicle Weight Scale(fast delivery from factory&cheap shipping cost)
Description:

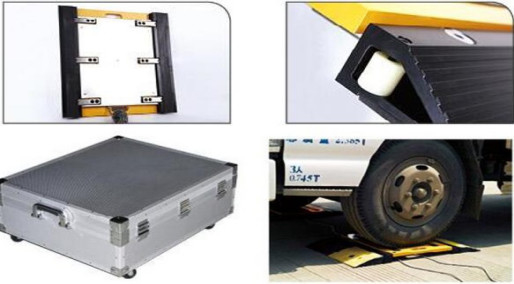

Aluminum-alloy; Ultra thin weigh pad design; Easily mounted / unmounted slope; Hermetically sealed, suits different environment;Works both dynamically and statically;Can be used to measure axle weight and whole vehicle weight when two or four weigh-pad connected together.
Applications:
1. Load control and weighing for the vehicles.
2. Measuring the weight and barycenter of aeroplane.
3. Measuring weight for special purpose.
Specifications:
Configuration table:
| AS001 | 350×350×35 | 1000/2000/3000Kg |
4pcs LC348 LoadCell,10m Cable Capacity:500/1000/1500Kg |
| 400×500×56.5 | 3000/5000/6000/10000Kg |
4pcs LC348 LoadCell,10m Cable Capacity:1500/2500/3000/5000Kg |
|
| 450×700×56.5 | 10000/20000/30000Kg |
4pcs LC348 LoadCell,10m Cable Capacity:5000/10000/15000Kg |
|
| 500×900×56.5 | 20000/30000/40000Kg |
4pcs LC348 LoadCell,10m Cable Capacity:10000/15000/200000Kg |
Outline dimension:
| Product Parameters | |||
| Rated load:1/2/3/5/6/10/20/30/40T | Compensated temp.range(℃): -10~+50 | ||
| Dynamic error (%F.S): 3 (5~10km/h) | Static error (%F.S):0.1~0.3 | ||
| Static comprehensive error(%F.S): 0.1~0.5 | Insulation resistance(MΩ): ≥5000(100VDC) | ||
| Rated output(mV/V): 1.0±0.1 | Use temp.range(℃): -30~+80 | ||
| Non-linearity(%F.S): 0.2 | Temp.effect on zero(F.S/10℃): 0.03 | ||
| Error on corners(%F.S): 0.2 | Temp.effect on span(F.S/10℃): 0.05 | ||
| Repeatariy(%F.S): 0.05 | Safe overload(%): 120 | ||
| Zero balance(%F.S): ±1 | Ultimate overload(%): 150 | ||
| Excitation voltage(VDC): 9~15 | Net weight(kg): 45 | ||
| Recommended voltage(V): 10 | Defend grade: IP66 | ||
| Wireless Specification | |||
| A/D conversion method | Σ-Δ 24bit | ||
| Input signal range | –19.5mV~19.5mV | ||
| Load cell excitation | DC 5V | ||
| Max. connection number of load cell | 1~4 | ||
| Load cell connection mode | 4 wire | ||
| Operating temperature | -10 °C ~40 °C | ||
| Allowable working temperature | -40 ° C ~ 70 ° C | ||
| Wireless transmission frequency | 430MHz to 470MHz | ||
| Wireless transmission distance | 300 meters (In Open Place) | ||
Competitive Advantage:
1. We have more than 10 year experience for manufacturing truck scale, floor scale, animal scale, axle weighing scale etc. We have advanced manufacturing equipment, moreover we are the leader in weighing scale field.
2. Full scale weight debugging and calibration
3. We can supply superior quality weighing scale with reasonable price and provide best service
