10t 30t 50t Wireless Hanging Crane Scale
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Rated Load: | 10t,30t,50t | Display Type: | LED And LCD |
|---|---|---|---|
| Power Supply: | 220V/50HZ | Type: | Wireless Crane Scale |
| Place Of Origin: | China | Application: | Construction / Container Terminal / Tower Crane |
| High Light: | Crane Weighing Scale,Industrial Crane Scale |
||

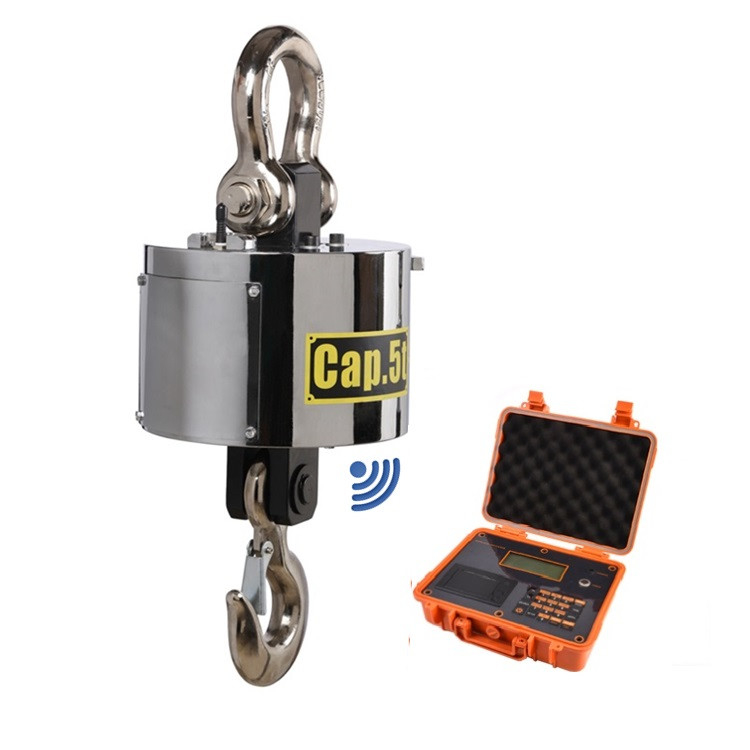

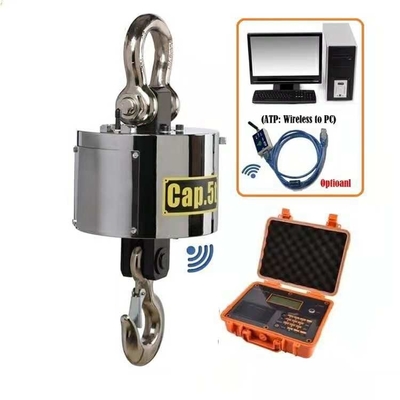

Wireless hanging Crane Scale 10t,30t,50t for Construction, container terminal,Tower crane
Description:
Wireless crane system / wireless crane scale CS-SW1C Multi-function operation: Tare; Zero; Auto zero tracking; Hold; Overload warning and record, operate through remote controller, etc functions. User-friendly design: Steel housing scale body, high-tension shackle and hook; Weighing data save protection in case of power off；keyboard calibration, easy to operate; Power saving mode, turn off automatically after 1 hour with no operation；Gathering up to data records of 2000 weighing, records can be sorted, searched and printed; Micro-printer in indicator; RS232 optional. The wireless crane scale CS-SW1C with WI680 wireless indicator.
Wireless Features:
| Type: | WI680II |
| Product Standard: | GB/T11883-2002 |
| Class Of Accuracy: | OIML Ⅲ |
| Calibrate: | All use the keyboard to complete |
| Power Supply Battery: | lithium battery |
| Display: | LCD screen with backlight |
| Reading Stability Time: | ≤5 seconds |
| Overload Alarm: | Maximum scale |
| Using Ambient Temperature: | -10℃~+50℃ |
| Using Ambient Humidity: | 20℃,≤85% |
| Maximum Range Of Wireless Transceiver: | 500~800 meters (open field) |
| Radio Frequency: | 430~470MHz |
Main Technical Data:
| Capacity: | 2/3/5/10/1520/30/50t | Overload Indication: | 100% F.S. + 9e | |
| Zero Range: | 4% F.S. | Max. Safety Load: | 125% F.S. | |
| Tare Range: | 20% F.S. | Ultimate Load: | 400% F.S. | |
| Stable Time: | ≤10 seconds | Battery Life: | ≥70 hours | |
| Adapter: | DC9V/1000mA | Operating Humidity: | ≤85% RH under 20℃ | |
| Standard: | According to OIML class III | |||
| Display: | 30mm (1.2'') 5digits LCD/LED | |||
| Battery Type: | Fully sealed Lead-Acid battery, 6V/7Ah | |||
| Remote Controller Distance: | ≤25m | |||
| Battery Of Remote Controller: | UM-4 SIZE AAA,1.5Vx2 | |||
Dimension:
| Model | Division | Accuracy | Size (mm) | ||||
| A | B | C | L | φ | |||
| CS-SW1C-2t | 1 | III | 70 | 200 | 50 | 620 | 320 |
| CS-SW1C-3t | 1 | III | 70 | 200 | 50 | 620 | 320 |
| CS-SW1C-5t | 2 | III | 85 | 200 | 70 | 720 | 320 |
| CS-SW1C-10t | 5 | III | 106 | 200 | 75 | 940 | 320 |
| CS-SW1C-15t | 5 | III | 140 | 200 | 90 | 897 | 320 |
| CS-SW1C-20t | 5 | III | 155 | 220 | 100 | 1050 | 320 |
| CS-SW1C-30t | 10 | III | 150 | 220 | 120 | 1260 | 320 |
| CS-SW1C-40t | 10 | III | 214 | 300 | 105 | 1263 | 380 |
| CS-SW1C-50t | 20 | III | 214 | 300 | 105 | 1263 | 380 |
Applications:
1. vehicle lifting
2. Railway terminal, iron and steel metallurgy, energy mines, factories, mines and other enterprises in the field of heavy cargo loading and unloading weighing.
Competitive Advantage:
1. Quality & Service: at SKYERSCALE, our priority is always providing our clients with great quality products and superior customer service.
2. Quick lead time: we are dedicated to providing the quickest turnaround times and work very hard to ensure that all of your deadlines are met.
3. Unbeatable prices: we continuously strive to find ways of reducing our production costs, and passing the savings over to you.
