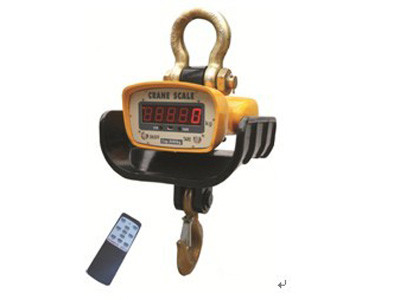

Auto Switch - Off 15 Ton Digital Crane Scale
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Rated Load: | 15ton | Display Type: | LED And LCD |
|---|---|---|---|
| Power Supply: | 220V/50HZ | Name: | Crane Scale |
| Feature: | Electronic Proof | Certification: | CE |
| High Light: | Crane Weighing Scale,Electronic Crane Scale |
||
15t high temperature electronic proof digital Crane scale crane hook weight scale
Description:
1. Multi-weighing units:
Kg, lb, N are selectable, generally kg are default unit.
2. Multi-function operation: Tare；Zero；Auto zero tracking；Total；Hold; Overload warning,
operation through remote controller functions.
3. User-friendly design: Cast aluminum housing and aluminum front panel for maximum
protection; Large red 5 digit LED display (digit height 30mm); Safety factor up to 4 times capacity; Battery Operated with low battery indication; Automatic switch-off
power-saving function.
Specifications:
| MODEL | Max. capacity(kg) | Min. weigh(kg/) | Division(kg) | Total counts (n) |
| OCS-EH-1 | 1000 | 10 | 0.5 | 2000 |
| OCS-EH-2 | 2000 | 20 | 1 | 2000 |
| OCS-EH-3 | 3000 | 20 | 1 | 3000 |
| OCS-EH-5 | 5000 | 40 | 2 | 2500 |
| OCS-EH-10 | 10000 | 100 | 5 | 2000 |
| OCS-GH-15 | 15000 | 100 | 5 | 3000 |
Min distance between scale and high temperature:
| 1000℃ | 1200℃ | 1400℃ | 1600℃ |
| 1.6m | 1.8m | 2m | 2.2m |
Appearance illustration:
Main technical data
| Standard | According to OIML class III |
| Display | 30mm (1.2’’) 5digits LCD/LED |
| Zero Range | 4% F.S. |
| Tare Range | 100% F.S. |
| Stable Time | ≤10 seconds |
| Overload Indication | 100% F.S. + 9e |
| Max. Safety Load | 150% F.S. |
| Ultimate Load | 700% F.S. |
| Battery Life | ≥70 hours |
| Battery Type | Fully sealed Lead-Acid battery, 6V/7Ah |
| Adapter | DC9V/1000mA |
| Operating Humidity | ≤85% RH under 20℃ |
| Remote Controller Distance | Min. 15m |
| Battery of Remote Controller | 7# battery, 1.5Vⅹ2 |
Applications:
1. vehicle lifting
2. Weighing functions
Competitive Advantage:
1. your inquiry and e-mail will be replied within 12 hours.
2. If you need to develop product with your own specification, we have professional engineers to work it out.
3. Never leave customer alone, solve problems with customer together.
4. Customer first, quality first, service first!
