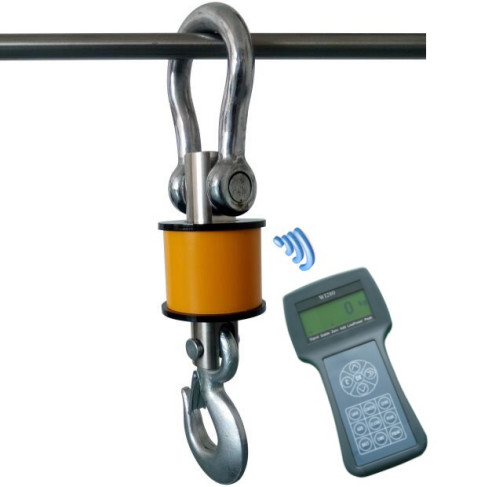

High Accuracy 10t Digital Crane Scale
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Feature: | High Accuracy | Rated Load: | 10ton |
|---|---|---|---|
| Display Type: | LCD | Power Supply: | 220V/50HZ Or 110v 60HZ |
| Type: | Crane Scale | Place Of Origin: | China |
| High Light: | Electronic Crane Scale,Industrial Crane Scale |
||
China supplier 10t High accuracy digital weight crane scale for STEELWORKS
Specifications:
Dimension:
| Type | Cap. | Index Value | Division | Dimension (mm) | Weight | ||||||
| Ton | Kg | B | C | D | E | F | G | H | Kg | ||
| CS-SWB2 | 1t | 1 | 3000 | 120 | 108 | 580 | 76 | 70 | 46 | 40 | 10 |
| 2t | 1 | 3000 | 120 | 108 | 580 | 76 | 70 | 46 | 40 | 10 | |
| 3t | 1 | 3000 | 120 | 108 | 580 | 76 | 70 | 46 | 40 | 10 | |
| 5t | 2 | 2500 | 120 | 108 | 680 | 88 | 75 | 60 | 50 | 15 | |
| 10t | 5 | 2000 | 120 | 108 | 780 | 114 | 95 | 71 | 60 | 27 | |
Description:
Accuracy class according to international standard three scales .
Battery charging time of about 70 hours working time
Safe overload 150% F.S
Destruction of overloading 300% F.S
Operating temperature -10 ~ 50 ℃
Environment Humidity <90% R.H
Monitor specifications 5 30mm (1.2 " ) LED high brightness displays.
Reading stabilization time <3S
Remote distance <25M
WI280 receive Indicator:
Interval Value:1/2/5/10/20/50/100
Display:192*64 dots display;6 status indicators(backlight)
Power: Lithium Battery, use 48 hours for one Charging
Environment temperature: Scale body -10℃~50℃;Instrument 0℃~40℃
Maximum wireless transceiver distance:>300m(open area)
Radio frequency:434MHz
Applications:
1. vehicle lifting
2. Railway terminal, iron and steel metallurgy, energy mines, factories, mines and other enterprises in the field of heavy cargo loading and unloading weighing.
Competitive Advantage:
1. your inquiry and e-mai will be replied within 12 hours.
2. If you need to develop product with your own specification, we have professional engineers to work it out.
3. Never leave customer alone, solve problems with customer together.
4. Customer first, quality first.
