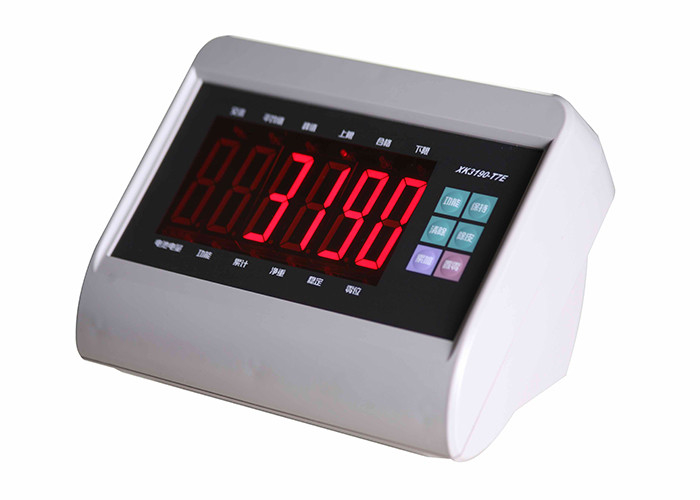

6 Digits LED Digital Weight Indicator For Floor Weighing Scales

YH-T7E plastic Electronic digital Weighing Indicator for platform scales

Specifications:

STANDARD FUNCTION:

Peak hold function

Animal weighing function

Kg/lb switch function

Pre-set tare weight function

High-ok-low function

Weight accumulate , accumulate display ,accumulate clear fuction

ZERO trucking range , ZERO setting ( switch on / manually ) range , speed rate of zero

Setting could be set separately .

Battery indication and alarm for low battery protection .

PARAMETRES:

Input signal range -19mV-19mV

Load cell excitation: DC5V;

Max. connection number of load cell: 4 at 350ohm

Load cell connection mode : 6 wires

Verified counts 3000

Display 6 digits LED,6status indication

Display range -999999-999999

Power supply : AC 220v : 50-60hz DC In-built rechargeable battery

Description:

1. Weighing Indicator YH-T7E adopts fast speed ,

2. High precision A/D conversion technology ,

3. Widely applied in electronic platform scale,

4. Electronic floor scale ,

5. And so on alike static weighing system equipped with 1-4 loadcell .

FEATURES:

1. Low power consumption, provided with different kinds of power saving mode.

2. Optional for RS232 communication with selectable baud rate and scoreboard interface

Sending by 20mA current loop .

3. Various kind of weighing mode , with easy operation

4. AC/DC both available , could be recharged during power off .

Applications:

Weighing display

Competitive Advantage:
1. Professional manufacturer with 10 years

2. OEM/ODM service acceptable

3. 100% inspection

4. Warranty: one year
