Timing Power Off Digital Weight Indicator For Truck Scale

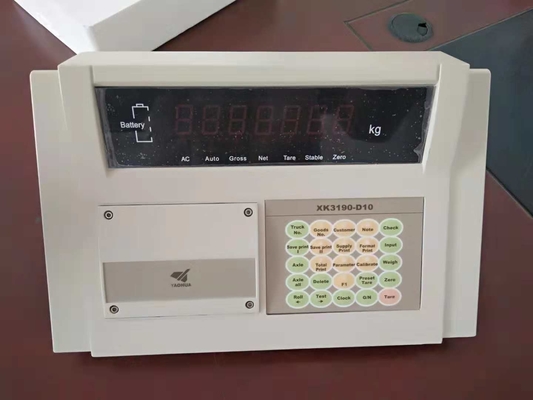

Industrial Digital Weighing Apparatus Yaohua D10 indicator for truck scale

Specifications:

Standard function

- A/D conversion with readability 1/30000

- Use inner code to replace weight observing and analysis tolerance

- Zero range setup (auto/manual)

- Non-linearity and calibration tolerance correction

- Password management and timing power off function

- Auto/manual, condition/non-condition, daily/sorted report print setup

- Fast filled weighing bill print setup

- Save 1500 vehicle ID/net weight, 201 cargo ID/cargo name, 100 customer ID/customer name, 100 notes and 1501 weighing records

- Weighing data save protection in case of power off

- Input character with keyboard or download from PC

- Good consistency

- Hardware detection and voltage display of load cell signal

Technical parameter

Model	D10	D10P
Input signal range	-30mV~30mV
Input sensitivity	1V/e
Load cell Excitation	Dc 5V
Max. load cell connection	8 at 350 ohm or 16 at 700ohm
Display	7 bits LED, 7 status indications
Optional interface

Description:

Weighing indicator D10 adopts high precision A/D conversion technology, widely applied in electronic floor scale electronic truck scale static railway scale and so on alike static weighing system equipped with 1~8 load cell

Applications:

Weighing display, used in floor scale, truck scale/weighbridge, and static weighing system.

Competitive Advantage:

1. Professional manufacturer with 10 years

2. OEM/ODM service acceptable

3. 100% inspection

4. Warranty: one year
