High precision Simple Weighing Wireless Indicator/ Indicator For Crane Scale/Handheld wireless Inidicator for Dynamometer

Specifications:

Technical Specifications:

(1 ) Accuracy class according to OIML III scales standard
(2) Power battery-powered , scale and monitor batteries are 6V/4AH
( 3 ) Radio Frequency 430MHz to 470MHz, hardware 8 - way point , the software 100 frequency selectable
(4 ) Display update rate 6 times / sec
(5 ) The load cell excitation power supply DC 5V ± 5 %
(6) -10 ℃ -40 ℃ Operating temperature display scale body to compensate for temperature range

-10 ° C -50 ° C allowable working temperature of -40 ° C to -70 ° C
( 7 ) scale body battery charging time continuous working time 40 hours
(8) weighing indicator battery charging a standby time of 60 hours
(9 ) wireless transmission distance without block is not less than 500 m

Description:

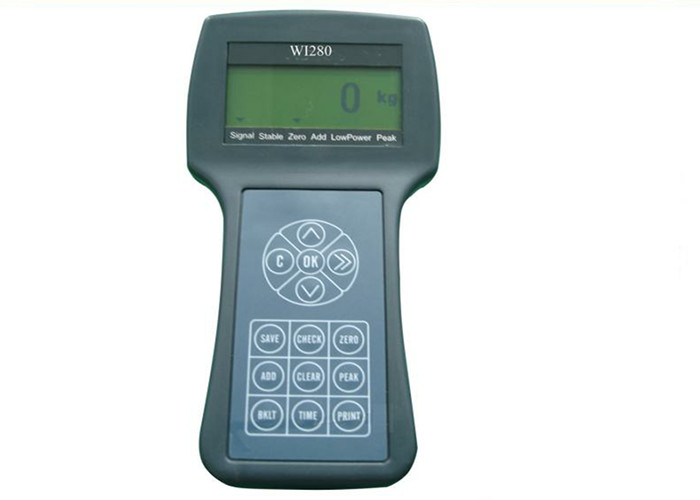

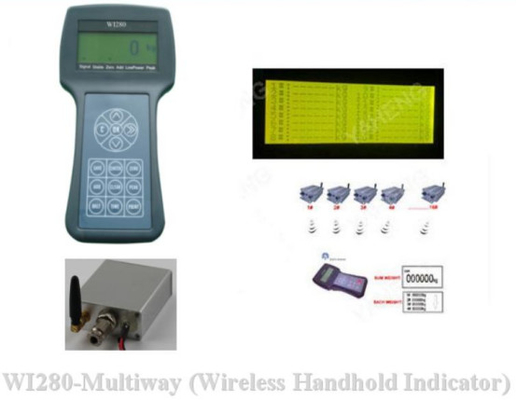

1. handheld wireless instrument ;
2. 192 * 64 dot matrix LCD screen , backlit display, clearly visible during the day and night ;
3. weighing results can be divided into up to 256 categories and classification statistics and print ;
4. built - in character printer , print a complete unit of measurement ;
5. The date and type of print statements ;
6. choose to print text in English
7. Selectable kg , t , lb or kN
8. accurate internal clock and calendar
9. automatically shut down the power scale after half an hour while no body operate.
10. Bidirectional data transfer functions.

11. Dimension:230*120*100mm

Applications:

Weighing display

Competitive Advantage:
1. Professional manufacturer with 10 years

2. OEM/ODM service acceptable

3. 100% inspection

4. Warranty: one year
