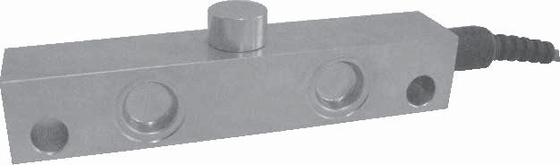

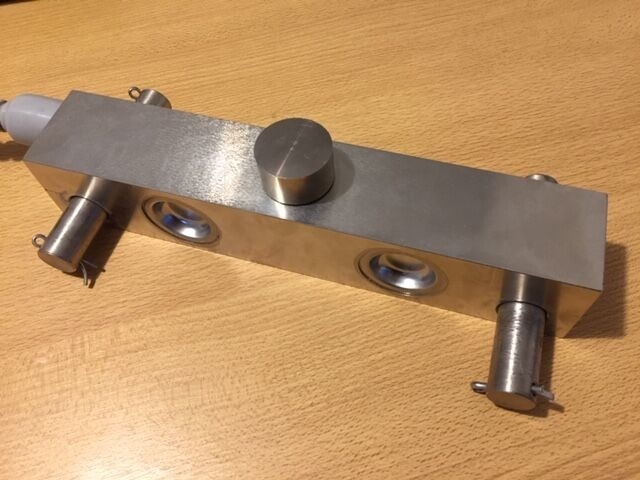

20t Electronic Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Keli Load Cell | Model: | QSFB-A |
|---|---|---|---|
| Material: | Alloy Steel | Capacity: | 20t |
| Usage: | Load Cell | Warranty: | 12 Months |
| Keywords: | Laod Cell | Application: | Galoce Electronic Weighing Scale Sensor Load Cell |
| Highlight: | High Accuracy Load Cell,Tension Link Load Cell |
||
Keli electronic load cell QSFB-A 20t IP68 scaleshield class,can be used in platform scale,weighing scale
Application :
- Platform Scales
- Floor Scales
- Blending Scales
Attribute:
| Rated Load | 20t |
| Sensitivity | 2.0000±0.001mV/V |
| Total Error | ±0.02%F.S |
| Creep(30minutes) | ±0.02%F.S |
| Recommended Excitation Voltage | 5V~12V(AC or DC) |
| Maximum Excitation Voltage | 15V(AC or DC) |
| Zero Balance | ±1%F.S |
| Input Impedance | 380±5Ω |
| Output Impedance | 350±2Ω |
| Safe Overload | 150%F.S |
| Ultimate Overload | 200%F.S |
| Temperature Effect On Load | ±0.02%F.S/10℃ |
| Temperature Effect On Zero | ±0.02%F.S/10℃ |
| Construction | Alloy Steel |
| Protection Class | IP68 |
Package:
