Q235 Steel 3×24m 200 Ton Truck Weigh Scales
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | Truck Scale | Model Number: | TS-P |
|---|---|---|---|
| Type: | Digital | Load Cell: | High Accuracy Digital Load Cell |
| Display Type: | LCD/LED | Power Supply: | 220v/50HZ Or 110V/60HZ |
| Material: | Q235 Steel | ||
| High Light: | Vehicle Weighing Scales,Truck Platform Scales |
||

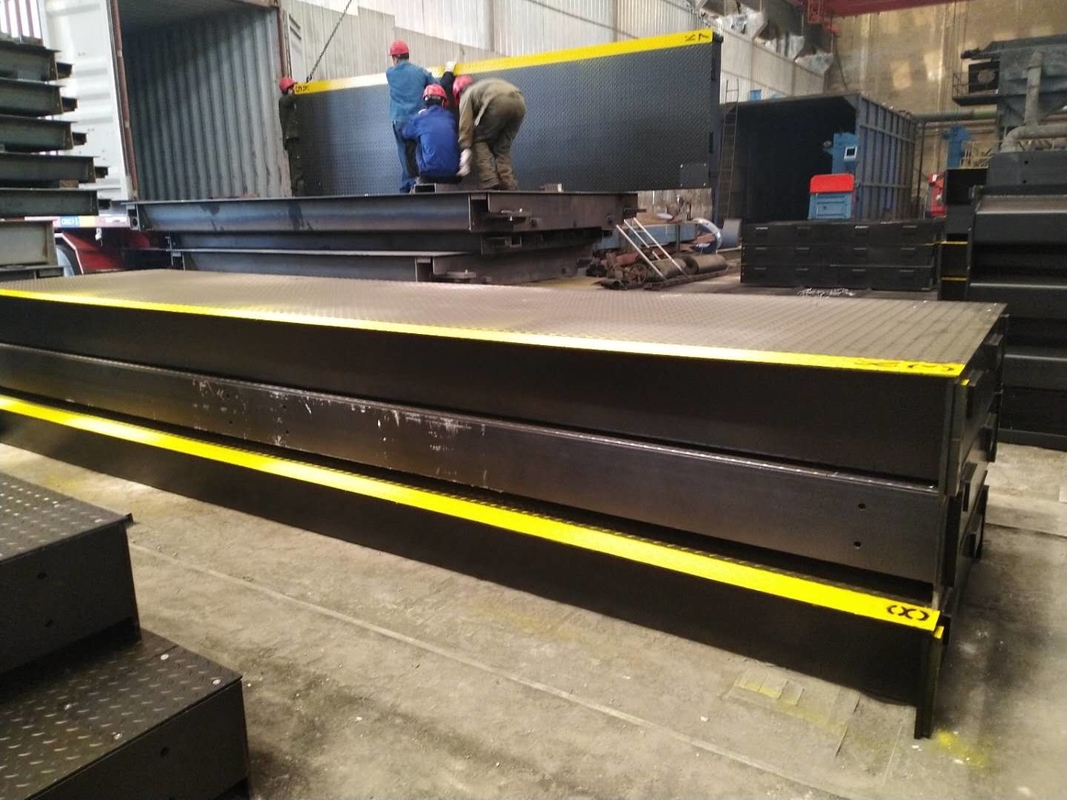

Truck Scale Weighbridge Scale for Weighing Truck 3 X 24m 200t Q235 steel
Description:
1. Durable design, with heavy loading capacity, excellent welding performance and prolonged working life.
2. Modular structure, platforms could be installed at random; Adding or deleting two pieces platforms to change length.
3. Continuous welding, 360 degree sand-blasting is optional.
4. Easy to install, save time and labor; 40 high container could load 2.5 sets 3x18m model B2 truck scale
5. Zemic OIML standard load cell to ensure the stable quality
Specificaions:
| size | Length of module | QTY of Module | Load cell Qty. |
| 3X6 | 5.55 | 2 | 6.25 |
| 3X8 | 3.5+5.5 | 3 | 8.15 |
| 3X9 | 4.55+3.55 | 3 | 9.15 |
| 3X10 | 4.55+4.55 | 3 | 10.15 |
| 3X12 | 5.55+5.55 | 3 | 12.15 |
| 3X15 | 4.55+4.55+4.55 | 4 | 15.05 |
| 3X16 | 4.55+5.55+4.55 | 4 | 16.05 |
| 3X18 | 5.55+5.55+5.55 | 5 | 18.05 |
| 3X20 | 4.55+4.55+4.55+4.55 | 5 | 19.95 |
| 3X21 | 5.55+4.55+4.55+4.55 | 5 | 20.95 |
| 3X22 | 5.55+4.55+4.55+5.55 | 5 | 21.95 |
| 3X24 | 5.55+5.55+5.55+5.55 | 5 | 23.95 |
1. Safe Overload: 150%
2. Load cells: KELI or ZEMIC LOAD CELLS
3. With indicator: Yaohua A9P
4. Painting: Anti rust and anti corrosion painting
5. All the screws and tools used for installation has been included in the price
6. Weighing Capacity: 10T-200T
7. Structure: U-shape beams
8. Thickness of smooth plate(8~12mm)
Chequer plate optional
9. Accuracy class: OIML(III)
Applications:
1). Weight accumulation
2). Net weight/tare
3). Weighing
Competitive Advantage:
1. We support small orders,fast delivery for customers to save even more valuable time.
2. We have abundant production and export experience ,best price and good quality.
3. We have global market,has been exported to UK, Czech, Latvia,Thailand, ViteNam, Chile,Canada,Philippines,Span etc. various countries around the world.
