Frame Type 100 Ton 3×16m Truck Scale Weighbridge
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Truck Scale Weighbridge | Accuracy: | 10kg |
|---|---|---|---|
| Display Type: | LCD/LED | Power Supply:: | 220v/50HZ Or 110V/60HZ |
| Place Of Origin: | China | Rated Load: | 200t |
| High Light: | Vehicle Weighing Scales,Truck Platform Scales |
||

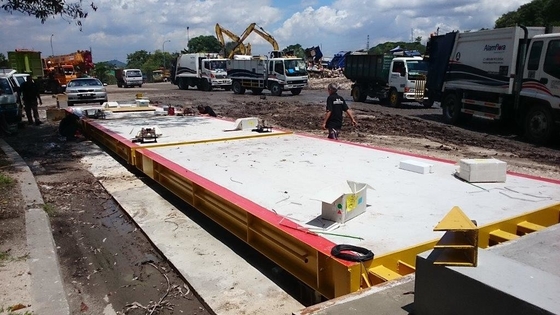

100 ton 3x16m electronic concrete weighbridge truck scale weighbridge
Description:
1. Supply status: steel frame in H300 steel, more convenient for container
transportation and economic for transportation charge
2. Reinforcement bars to be welded at customer's site.
3. With OIML R60 approved double shear beam load cells, KELI QS-30t or ZEMIC HM9B-30t
4. Width available: 3m,3.2m,3.4m
5. Standard length available:6m,7m,8m,9m,10m,12m,14m,16m,18m,20m,21m,24m
6. Max.Capacity available: 30t,40t,60t,80t,100t,120t
7. In one 40'container,7 pcs of 18m can be loaded in.
Specifications:
| size | Length of module | QTY of Module | Load cell Qty. |
| 3X6 | 1.5x6m | 2 | 4 |
| 3X8 | 1.5x4m | 4 | 6 |
| 3X9 | 1.5x4.5m | 4 | 6 |
| 3X10 | 1.5x5m | 4 | 6 |
| 3X12 | 1.5x6m | 4 | 6 |
| 3X15 | 1.5x5m | 6 | 8 |
| 3X16 | 1.5x5.33m | 6 | 8 |
| 3X18 | 1.5x6m | 6 | 8 |

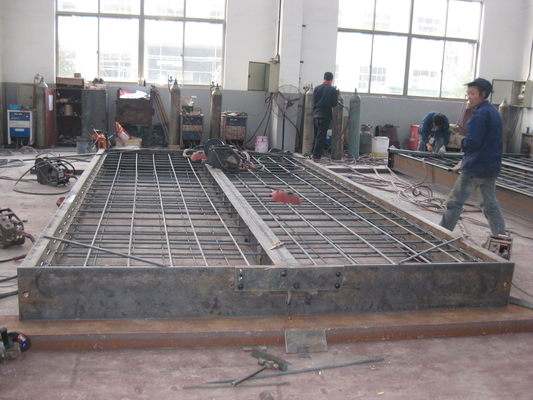

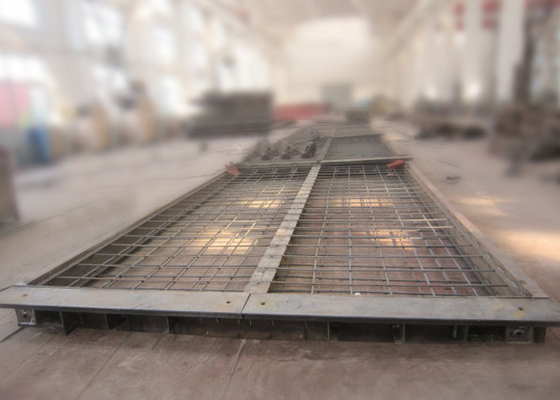

1) Frame type,reinforcement bars to be welded at customer site
2) Steel frame dismountable
3) Optional in platform size, Max. Cap.
4) Optional in load cell, indicator.
Applications:
1). Weighing
2). Net weight/tare
3). Weight accumulation
Competitive Advantage:
1. We develop this export style structure, suitable for container transportation, and becomes the most popular export style structures in China market.
2. Our engineer has the unique designing ideas for this structure that the other imitators cannot imitate, which makes our truck scales with the best ratio between the quality and price.
3. Easy installation, robust structure.
