Water Proof Digital Weighting Indicator
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model Number: | HC200/HE200 | Dimensions: | 210X135X60mm |
|---|---|---|---|
| Packing: | Carton | Display Type: | LED/LCD |
| Name: | Weight Scale Indicator | Type: | Indicator |
| Interface: | RS485(optional),RS232 | ||
| Highlight: | Load Cell Indicator,Weighing Scale Indicator |
||

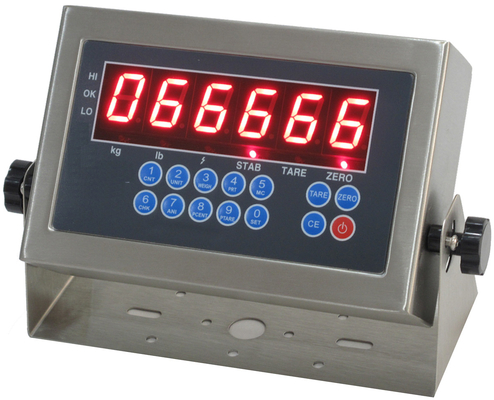

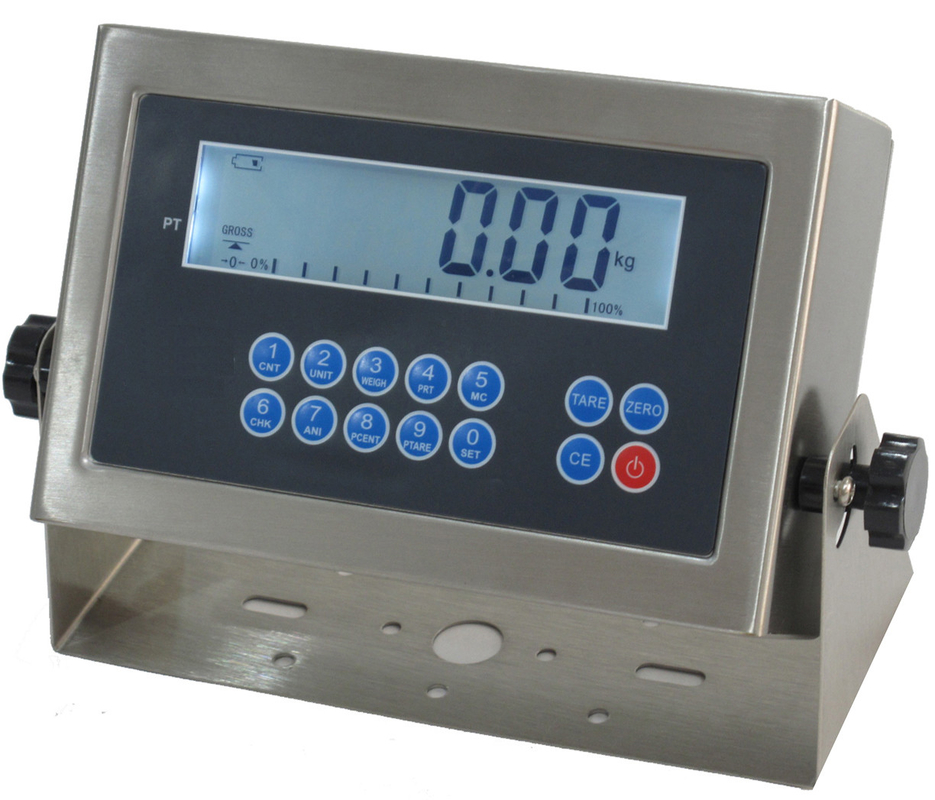

HC200/HE200 digital weighting indicator with stainless steel housing and water proof for Electronic platform scale
OIML
Features:
● HC200(1’LCD, 25 indication);
HE200(1’LED, 9 indication)
● 0-9 number keys (combined function
keys) and 3 function keys
● 1/60000 High Σ-Δ A/D conversion
● 2 RS232,1 RS485 optional ;
● 4 Units: Kg ,g, lb, oz
(OIML version only with kg and g)
● 8 at 350 ohm Load cells connection
● Linearity calibration ON or OFF
● 6V1.3ah Lead-acid rechargeable battery
● Extend Optional:
Connect to RS232 wireless to connect
with display or PC
Connect to relay box to get 4
channel set point
Specifications:
| Product name: | Weighting indicator |
| Model: | HC200/HE200 |
|
Size: |
210*135*60mm |
| Display type: |
HC200(1’LCD, 25 indication); |
| Interface: |
2 RS232,1 RS485 optional ; |
|
4 Units: |
Kg ,g, lb, oz (OIML version only with kg and g) |
| Battery: | 6V1.3ah Lead-acid rechargeable battery |
| Operating temperature: | 0℃ to 40℃ |
| Storage temperature: | -25℃ to 55℃ |
Front Panels
Our services:
1. Free consult support
2. Customization
3. After sale service
FAQ
| 1. What essential information is needed for product selection? |
|
Weight/ load range (in g, kg, ton or lb), application, material (stainless steel, alloy aluminum, etc.) and other requirement of customers.
|
| 2. How will you ensure quality of your products? |
|
A. All products had been treated through strict process according to ISO9001 standard and checked by IQC and OQC department before shipping.
B. One year warranty and life time free consult to any needs related with our product.
|
| 3. What terms of payment is acceptable? |
|
T/T, L/C, trade assurance of Alibaba, Secure payment, West Union, Paypal, Money Gram, etc.
|
| 4. When production could be arranged? |
|
As soon as the payment was received.
|
