Corrosion Resistant Wireless Load Cell For Truck Scale Weighbridge
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Weighing Load Cell | Material: | Stainless Steel |
|---|---|---|---|
| Rated Load: | 10/20/25/30/40/50t | Type: | Wireless Crane Load Cell |
| Color: | Silver | Warranty: | 1year |
| High Light: | Telemetry Load Cell,Dynamometer Load Cell |
||
Less weight measuring instrument load cell for weighbridge truck scale
Specifications:
Technical Parameter:
| Rated Load: | 10/20/25/30/40/50t | Input Resistance: | 750±5Ω |
| Wireless Frequency: | 240GHz | Output Resistance: | 702±2Ω |
| Wireless Distance: | Min:800m | Insulation Resistance: | ≥5000MΩ |
| A/D Conversion Rate: | ≥50 times/seconds | Operating Temp. Range | -30~+70℃ |
| Battery Life: | ≥50 hours | Max. Safe Over Load: | 120%F.S |
| Sensitivity: | (3.0±0.1%) m V/V | Ultimate Over Load: | 200%F.S |
| Combined Error: | ±0.05% F.S | Recommend Excitation: | 10~12V DC |
| Creep Error(30min): | ±0.02% F.S | Maximum Excitation: | 15V DC |
| Zero Balance: | ±1% F.S | Sealing Class: | IP67/IP68 |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Element Material: | Alloy /Stainless Steel |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Citation: | GB/T7551-2008/OIML R60 |
Description:

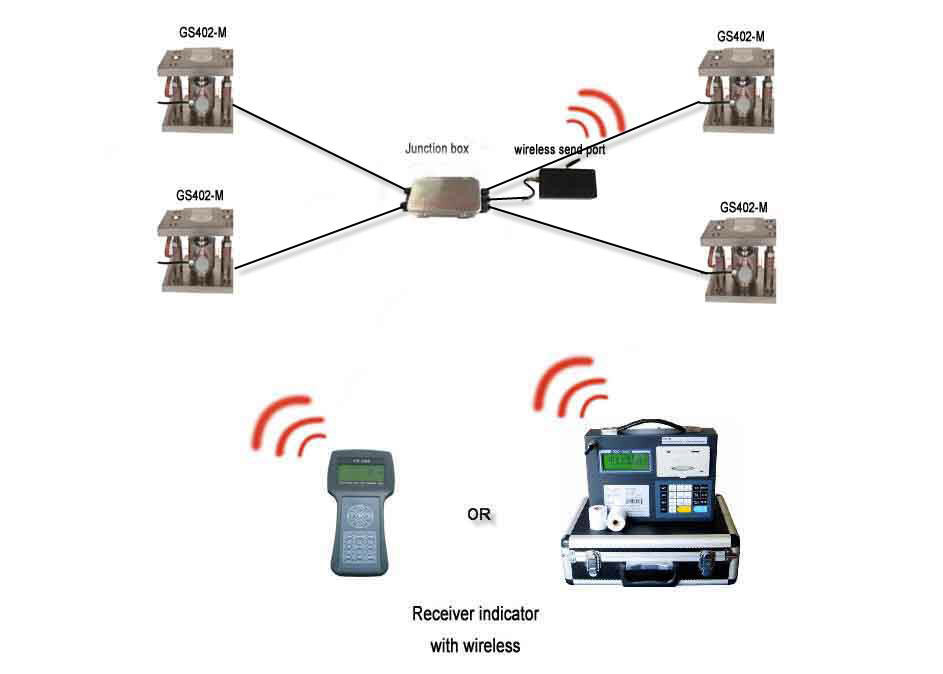

Circuit Diagram
ATP(Wireless to PC)
Wireless Display
Notice:
Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from .For charge :according to Li-ion battery. Do not excess discharge.
Applications:
1). Weighing
2). Net weight/tare
3). Weight accumulation
Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well;
2. Good Service: We treat clients as friends;
3. High Quality: We have strict quality control system. Good reputation in the market.
