5t Wireless Load Cell For Floor Scales
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Material: | Alloy Steel | Rated Load: | 5t |
|---|---|---|---|
| Type: | Wireless Load Cell | Color: | Silver |
| Warranty: | 1year | Name: | Tension Load Cell |
| High Light: | Telemetry Load Cell,Dynamometer Load Cell |
||
5t Wireless weighing Load Cell used for floor scales truck scales
Description:

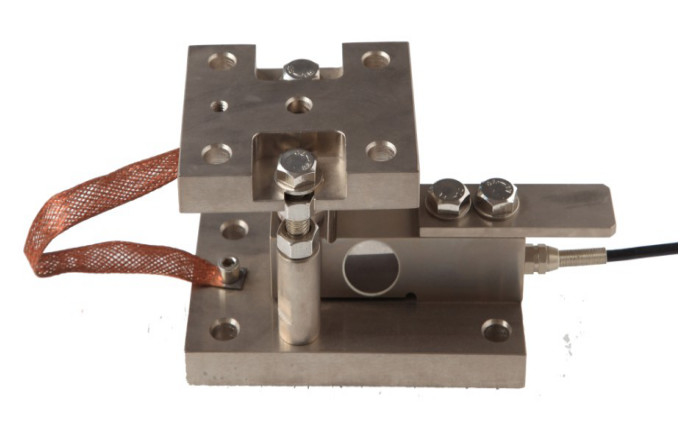

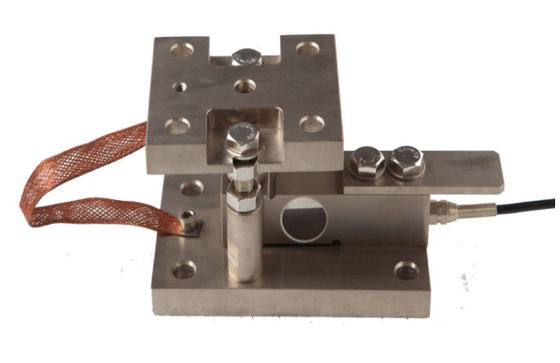

1. SQB series is single shear beam.
2. One end of the load cell is fixed, another loaded and rocker pressure head transfers force.
3. Easy installation and it is suitable for floor scale, automobile test facilities, hopper scale and other electronic weighing devices.
Technical Parameter:
0.5~3T
5T
| Rated Load: | 0.1/0.2/0.25/0.3/0.5/1/1.5/2/2.5/3/5/7.5/10t | ||
| Wireless Frequency: | 240GHz | Input Resistance: | 385±5Ω |
| Wireless Distance: | Min:800m | Output Resistance: | 351±2Ω |
| A/D Conversion Rate: | ≥50 times/seconds | Insulation Resistance: | ≥5000MΩ |
| Battery Life: | ≥50 hours | Operating Temp. Range: | -30~+70℃ |
| Sensitivity: | (2.0±0.1%) m V/V | Max. Safe Over Load: | 120%F.S |
| Combined Error: | ±0.02% F.S | Ultimate Over Load: | 200%F.S |
| Creep Error(30min): | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Zero Balance: | ±1% F.S | Maximum Excitation: | 15V DC |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Sealing Class: | IP67/IP68 |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Element Material: | Alloy /Stainless Steel |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Citation: | GB/T7551-2008/OIML R60 |
Notice:
Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from .For charge :according to Li-ion battery. Do not excess discharge.
Applications:
Suitable for hopper scale, scale, roller scale,continuous casting ladle electronic scale and various special weighing apparatus
Competitive Advantage:
1. We not only provide the weighing device, at the same time to undertake engineering orders, and provide personalized custom services to you.
2. We will work closely with you to analyze your measurement task and design the matching solution. Through rapid engineering (CAD) you get first concepts for your transducer in a short time. Advice on conceptual design is free for you.
3. After having agreed the concept with you, we provide you with a quote for the customized transducer that really meets your unique requirements.
4. We have twenty years of manufacturing experiences, it help us get a prototype of your sensors in a short time.If the prototype meets your requirements, production starts.
