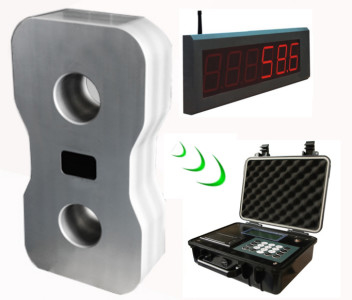

Anti Corrosion High Tensile Strength Wireless Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Industrial Load Cells | Material: | Alloy Steel ,stainless Steel |
|---|---|---|---|
| Theory: | Resistance Sensor | Output: | Digital Sensor |
| Sealing Class: | IP67-IP68 | Application: | For Lifting / Weighing |
| High Light: | Telemetry Load Cell,Tension Load Cell |
||
Mutil-Channel Shackle weighing Load Cell 3t 6t 17t 30t 120t
Description:
Their rugged construction makes them ideal for lifting and weighing operations in the most extreme environments, including marine, offshore and onshore applications. Manufactured from high tensile, aerospace grade aluminium, the units are anodised to protect against corrosion. The link loading holes are bevelled so that torsional effects are minimised, with an internal antenna for added protection.
At China Industries we have over 10 years experience designing, manufacturing and supplying load cells of the highest quality. We can supply all your load cell requirements and offer expert load cell and applications advice.View our load links range online today or contact our friendly team for specialist load cell and applications advice.
Specifications:
| Load Rating | Weight | A | B | C | D | E | F | G |
| (Ton) | (Kg) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
| 2 | 1.3 | 230 | 74 | 24 | 20 | 37 | 156 | 50 |
| 5 | 1.8 | 250 | 84 | 32 | 26 | 37 | 176 | 48 |
| 12.5 | 3.5 | 300 | 108 | 50 | 40 | 54 | 192 | 81 |
| 25 | 7 | 350 | 144 | 65 | 52 | 72 | 206 | 96 |
| 35 | 10.8 | 400 | 168 | 75 | 58 | 84 | 232 | 106 |
| 50 | 17.3 | 450 | 202 | 90 | 71 | 101 | 248 | 121 |
| 75 | 29.5 | 480 | 244 | 110 | 84 | 122 | 236 | 141 |
| 120 | 56.5 | 550 | 270 | 141 | 97 | 130 | 290 | 172 |
| 150 | 78.9 | 620 | 290 | 161 | 110 | 150 | 320 | 192 |
| 200 | 122 | 730 | 340 | 170 | 133 | 180 | 370 | 201 |
| 250 | 158 | 790 | 390 | 189 | 143 | 200 | 390 | 220 |
| 300 | 203 | 860 | 430 | 189 | 153 | 225 | 410 | 220 |
| 400 | 304 | 1020 | 520 | 205 | 178 | 270 | 480 | 236 |
| 500 | 408 | 1120 | 560 | 230 | 188 | 310 | 500 | 261 |
Wireless Load Links Typical Specifications:
| Rate Load: | 1/205/5/12/25/35/50/75/100/150/200/250/300/500T | ||
| Battery Type: | 18650 rechargeable batteries or polymer batteries (7.4v 2000 Mah) | ||
| Proof Load: | 150% of rate load | Max. Safety Load: | 125% F.S. |
| Ultimate Load: | 400% F.S. | Battery Life: | ≥40 hours |
| Power On Zero Range: | 20% F.S. | Operating Temp.: | - 10℃ ~ + 40℃ |
| Manual Zero Range: | 4% F.S. | Operating Humidity: | ≤85% RH under 20℃ |
| Tare Range: | 20% F.S. | Remote Controller Distance: | Min.15m |
| Stable Time: | ≤10seconds; | System Range: | 500~800m |
| Overload Indication: | 100% F.S. + 9e | Telemetry Frequency: | 470mhz |
Dimension:
Front view cabled Side view cabled
Competitive Advantage:
- High quality and Durable
- Competitive Price
- Adequate Stock
- Fast Delivery
- Convenient Transportation
