High Strength Subsea Shackle Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Wireless Load Cell | Capacity: | 20t 150t 300t |
|---|---|---|---|
| Material: | Alloy Steel ,stainless Steel | Theory: | Resistance Sensor |
| Output: | Digital Sensor | Sealing Class: | IP67-IP68 |
| High Light: | Tension Load Cell,Dynamometer Load Cell |
||
Subsea Shackle weighing Load Cell 20t 150t 300t
Description:

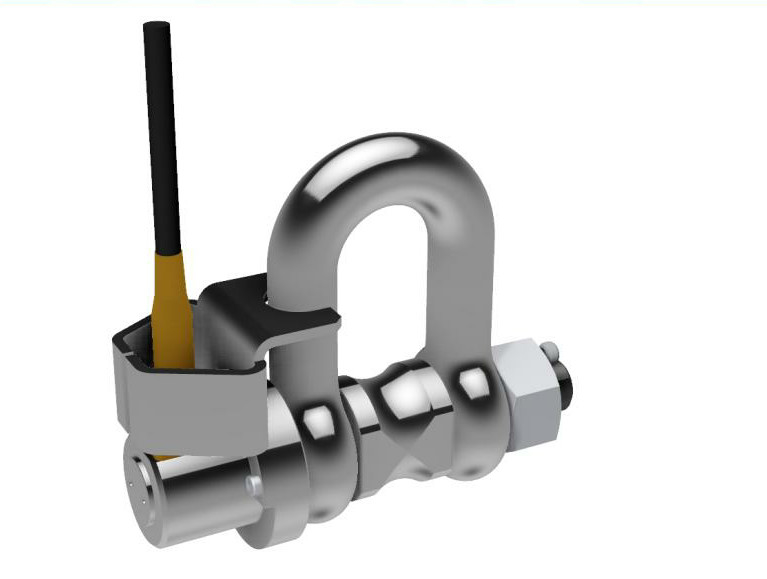

The Subsea Shackle is a High Strength Subsea rated Load Cell manufactured with a Stainless Steel Load Pin. The Subsea Shackle is designed for monitoring tensile loads below seawater and is pressure tested to 300 Bar. The load cell is manufactured to withstand a though environment. The electronics provide power supply regulation, reverse polarity and over voltage protection..
1. Ranges from 3 to 500 Ton
2. Integrated 2-wire signal amplifier, 4-20mA
3. Robust design in stainless steel
4. Designed for Harsh Environments
5. Designed to be compatible with existing standards
6. Easy to install and maintain
The electronics are molded and encapsulated inside the load cell, proven to be the best solution for EMC, potential leakage and long lifetime performance.
Applications:
1. Subsea Cable recovery/repair
2. Subsea vehicle lifting
3. Wave generator mooring/tethering
4. Offshore wind cable installations
5. Bollard Pull and Certification
6. Subsea Cable Laying
Specifications:
| Capacity: | 3t~500t | |||||||
| Safety Overload: | 150% of rated load | |||||||
| Protection Class: | IP66 | |||||||
| Bridge Impedance: | 350ohm | |||||||
| Power Supply: | 5-10V | |||||||
| Combined Error(Non-linearity+Hysteresis): | 1 to 2% | |||||||
| Operating Temperature: | -25℃ to +80℃ | |||||||
| Storage Temperature: | -55℃ to +125℃ | |||||||
| Temperature Influence on zero: | ±0.02%K | |||||||
| Temperature Influence on Sensitivity: | ±0.02%K | |||||||
| Cap. | Max. Proof Load (Ton) | Normal Size ‘A’ | Inside Length‘B’ | Inside Width ‘C’ |
Bolt Dia. ‘D’ |
Unit Weight(Kg) | ||
| 3 | 4.2 | 25 | 85 | 43 | 28 | 3 | ||
| 6 | 8 | 25 | 85 | 43 | 28 | 3 | ||
| 10 | 14 | 32 | 95 | 51 | 35 | 6 | ||
| 17 | 23 | 38 | 125 | 60 | 41 | 10 | ||
| 25 | 34 | 45 | 150 | 74 | 51 | 15 | ||
| 35 | 47 | 50 | 170 | 83 | 57 | 22 | ||
| 50 | 67 | 65 | 200 | 105 | 70 | 40 | ||
| 75 | 100 | 75 | 230 | 127 | 83 | 60 | ||
| 100 | 134 | 89 | 270 | 146 | 95 | 100 | ||
| 120 | 150 | 90 | 290 | 154 | 95 | 130 | ||
| 150 | 180 | 104 | 330 | 155 | 108 | 170 | ||
| 200 | 320 | 152 | 559 | 184 | 121 | 215 | ||
| 300 | 480 | 172 | 683 | 213 | 152 | 364 | ||
| 500 | 800 | 184 | 813 | 210 | 178 | 520 | ||
Note: All dimensions are subject to change according actual use as a standard.
Competitive Advantage:
1. Professional manufacturer with 10 years
2. OEM/ODM service acceptable
3. 100% inspection
4. Warranty: one year
