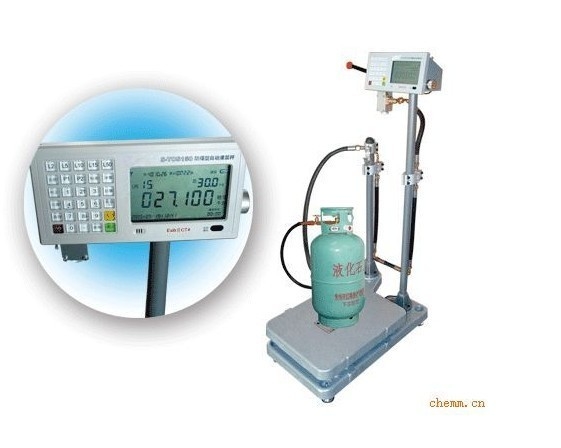

Compact Automatic Cut Off LPG Gas Cylinder Filling Machine

LPG gas cylinder filling scale / LPG gas cylinder filling machine / Automatically cut off

Descripton:

    After the application of the large diameter auto-matic cut-off valve resisting to polluton,this pruduct,to some extent,solves the defects of blocking of other series.Flexible electromechanical linage device can be diriven by batteries,according with the requirement of explosion proof,getting rid of the trouble of after-nating current pavement.The whole structure is com--pact and reasonable. The appearance is beautiful. It can bring safety to its users.Once being installed,it can be put into use.with no expertise,everyone can easily take advantage of the product.The same as the maintenance.The difficulty will be reduced and the work efficiency will be improved,which can enable the preciseness and quality when filling.

Specification:

• Degree of accuracy: 3 degree
• Min.Capacity: 2kg
• Max.Capacity: 300kg
• Degree of Division: 3000
• Division Value: 100g
• Pressure: 0~1.6MPa
• Duration: no less than 2 years
• Suitable medium: liquefied petroleum gas and other liquefied gas whose requirement of explosion proof is lower than Exib III CT4.

Function:

• Able to measure the net weight(rule out the container)auto zero(increase,decrease or cell hanging)
• Automatic cutting once reaching the set weight with buzzer calling and alerting signal
• Auto recording statistic of every filling tank
• Various filling modes can be chosen
• Easy to see the weight before and after
• Filling interface can be selected.Once is the normal one.The other is the one without empty tank.When 10% left,the weight will be shown.Long bottom can make the inversion in 3 seconds.
• Batch query function:querying the lase ten accumlated bottles and gas consumption in the interface.
• Anti cheating function:weight decrease for man made interfere without suspending.Auto altering alarm-LOC-.
• Preventing overfilling:limitation to the Max.filling capacity.Customized
• Customer code or filling tank code can be input to realized sale management and tracing(wireless module)
• Wireless communication function(optional): uploading to the computer,monitoring and inquiring
