Single Deck 1200×2200mm 5 T Floor Weighing Scales
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Rated Load: | 5t | Platform Size: | 1.2*2.2m |
|---|---|---|---|
| Color: | Optional | Packing: | Cardboard |
| Power Supply: | 110-240V(AC) | Type: | Floor Scale |
| Product Name: | Weighing Floor Scale | ||
| High Light: | Heavy Duty Floor Scales,Industrial Floor Scales |
||

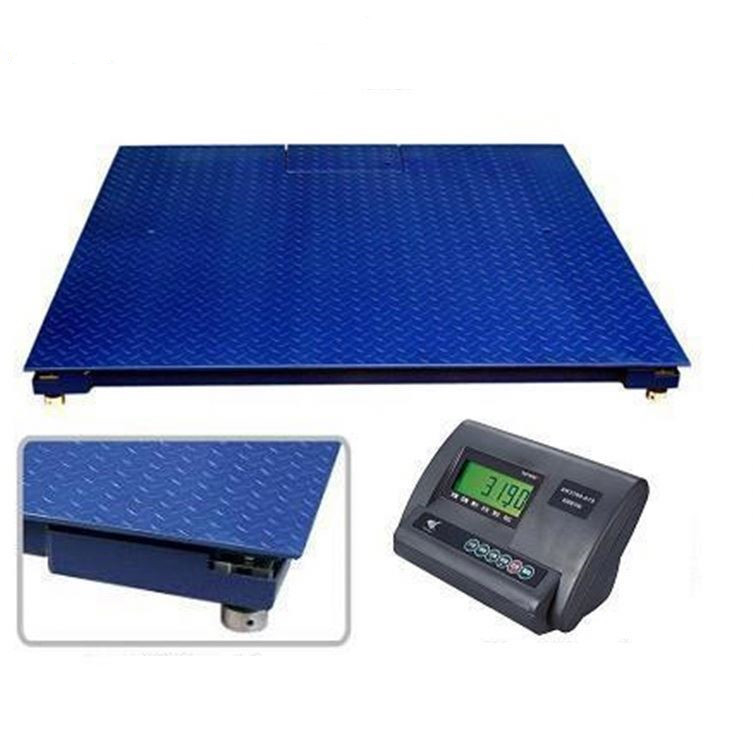

1.2x2.2m 5 tons heavy duty single desk without frame carbon steel platform weighing floor scales
Description:

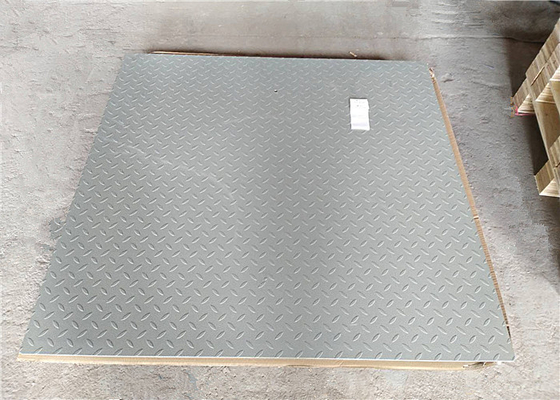

1). Checker plate platform, 5mm or 6mm or 8mm thick, single deck without frame.
2). Sandblasting before powder coated.

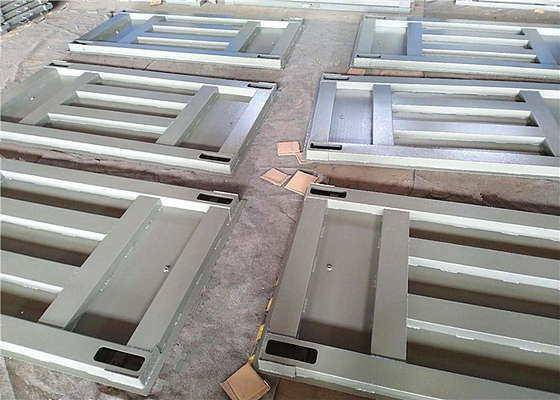

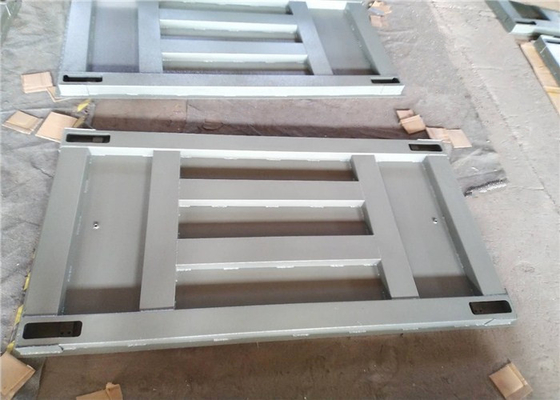

3). Mild-steel structure, U shape beams by modules.
4). 5mm or 6mm thick checker top plate platform.
5). 4 load cell construction.
6). With KELI SQB /ZEMIC H8C/ Guangce YZC shear beam load cells.

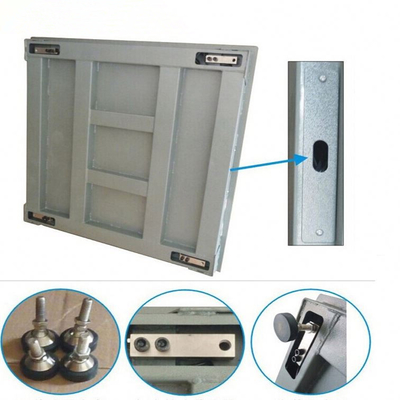

7). Adjustable heavy duty rubber feet.
8). With stainless steel or plastic junction box, and 5m cable in protection of metal-plastic jacket cable.
Specifications:
|
Model |
Size(m) |
Capacity(t) |
|
| 1010 | 1.0*1.0 | ||
| 1~3 | |||
| 1212 | 1.2*1.2 | 1~3 | |
| 5 | |||
| 1215 | 1.2*1.5 | 1~3 | |
| 5 | |||
| 1515 | 1.5*1.5 | 1~3 | |
| 5 | |||
| 1520 | 1.5*2.0 | 1~3 | |
| 5 | |||
| 1220 | 1.2*2.0 | ||
| 5 | |||
| 1222 | 1.2*2.2 | 5 | |
Optional in platform size, Max. Cap.
Optional in load cell, indicator.
Be suitable for weighing vehicles and goods
Ramp is optional
Color is optional—grey, black, blue, green or other colors.
Applications:
1. Weighing
2. Weight accumulation
3. Net weight/tare
Advantages:
1. Convenient Transportation
2. High quality and Durable
3. Competitive Price
4. Fast Delivery
5. Good Service
