Measuring Instrument Wireless Load Cell
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Wireless Load Cell | Material: | Alloy Steel ,stainless Steel |
|---|---|---|---|
| Theory: | Resistance Sensor | Output: | Digital Sensor |
| Sealing Class:: | IP67-IP68 | ||
| Highlight: | Telemetry Load Cell,Tension Load Cell |
||

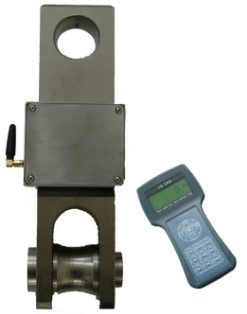

Wireless weight link measuring instrument load cell for water bags
Description:
Wireless load cells,is a new style weight meter. The weighing meter combination of wireless transmission technology, dynamic measurement technology, using digital signal for signal transmission and display. The instrument consists of weighing and display of two major, Weighing in part by the weighing sensor and intelligent measuring instrument, Measurement data sent by wireless transmission module, The part of the large-capacity battery supply power. A handheld Display instrument, Power supplied by lithium batteries, Character liquid crystal display. Wireless load cells, both inherited our existing advantages of cable transmission of the weighing instrument, At the same time overcome the transmission distance is short, poor anti-interference ability and cable transmission line easily crushed shortcomings.. Display instrument is small, light weight, easy to carry and use features. The available in the following capacities : 1MT, 2MT, 3MT, 5MT, 10MT, 20MT, 30MT, 50MT, 100MT, 150MT & 200MT.
Technical Parameter:
| Rated Load: | 1t/2t/3t/5t/10t/20t | Input Resistance: | 750±5Ω |
| Wireless Frequency: | 430~485MHz | Output Resistance: | 702±2Ω |
| Wireless Distance: | Min:800m(default) | Insulation Resistance: | ≥5000MΩ |
| A/D Conversion Rate: | ≥50 times/seconds | Operating Temp. Range | -30~+70℃ |
| Battery Life: | ≥50 hours | Max.Safe Over Load: | 120%F.S |
| Sensitivity: | (1.5±0.1%) m V/V | Ultimate Over Load: | 200%F.S |
| Combined Error: | ±0.02% F.S | Recommend Excitation: | 10~12V DC |
| Creep Error(30min): | ±0.02% F.S | Maximum Excitation: | 15V DC |
| Zero Balance: | ±1% F.S | Sealing Class: | IP67 |
| Temp. Effect On Zero: | ±0.02% F.S/10℃ | Element Material: | Alloy /Stainless Steel |
| Temp. Effect On Span: | ±0.02% F.S/10℃ | Citation: | GB/T7551-2008/OIML R60 |
Circuit Diagram:
Notice:
Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather, the load cell with the indicator in different place, orientation or obstruct from .For charge : according to Li-ion battery. Do not excess discharge.
Applications:
Measuring instruments
Competitive Advantage:
1. Low MOQ: It can meet your promotional business very well;
2. Good Service: We treat clients as friends;
3. High Quality: We have strict quality control system. Good reputation in the market.
